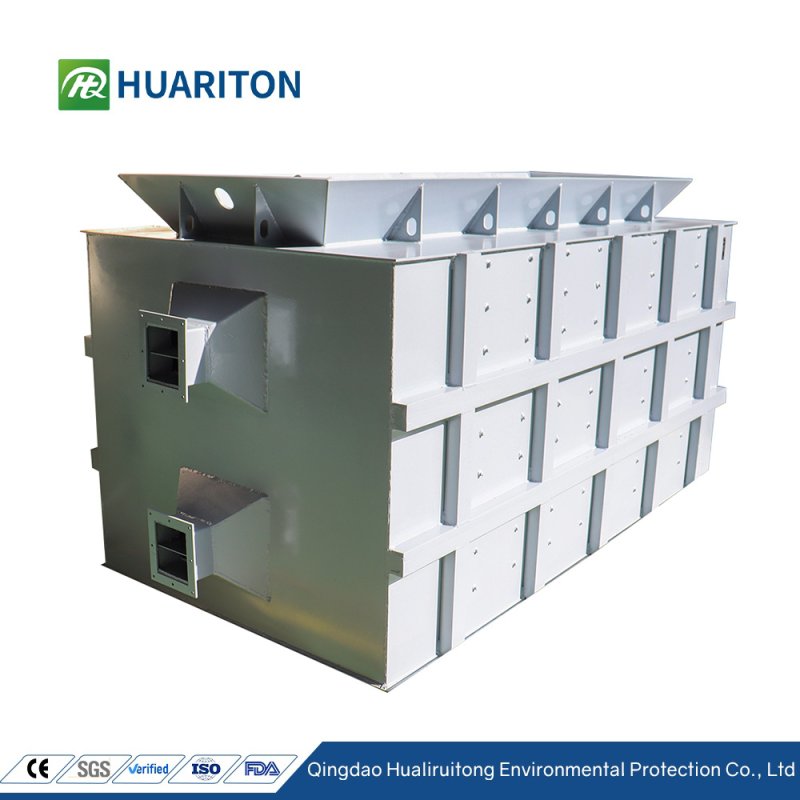

The HIS Series Gasification Incinerator is an energy-efficient, professional-grade gasification system independently developed by our company. It is specifically designed for the environmentally safe treatment of organic solid waste, as well as agricultural and forestry waste.
This series operates using the kinetic energy generated by a blower, eliminating the need for additional fuel. Featuring an optimized reaction chamber and an integrated flue gas purification system, it delivers stable anaerobic pyrolysis, efficient syngas generation, and ultra-low pollutant emissions.
Its key advantages include a compact footprint, reduced operating costs, and reliable long-term performance. The carefully engineered internal structure enhances syngas purity, ensuring a completely smokeless and odorless gasification process while meeting stringent international environmental emission standards.
Features
Fuel-Free Operation: The gasification process requires no auxiliary fuel after ignition, reducing operating costs.
High Thermal Efficiency: Optimized gasification technology ensures complete waste destruction and stable performance.
Other Features
· Low Emissions: Integrated flue gas treatment helps minimize smoke, odor, and harmful pollutants.
· Wide Waste Compatibility: Suitable for organic solid waste, agricultural waste, biomass, and other combustible materials.
· Easy Operation: Intelligent control system enables simple operation and reliable daily use.
· Durable Construction: High-quality refractory lining provides excellent heat retention and long service life.
· Customizable Design: Available in multiple capacities and configurations to meet different project requirements.
Applications
Agricultural Farms:
Disposal of crop residues, livestock waste, and biomass.
Industrial Facilities:
Treatment of organic solid waste and combustible production waste.
Remote Areas:
Independent waste disposal for islands, mining camps, and construction sites.
Municipal & Rural Communities:
Efficient treatment of domestic solid waste where landfill access is limited.

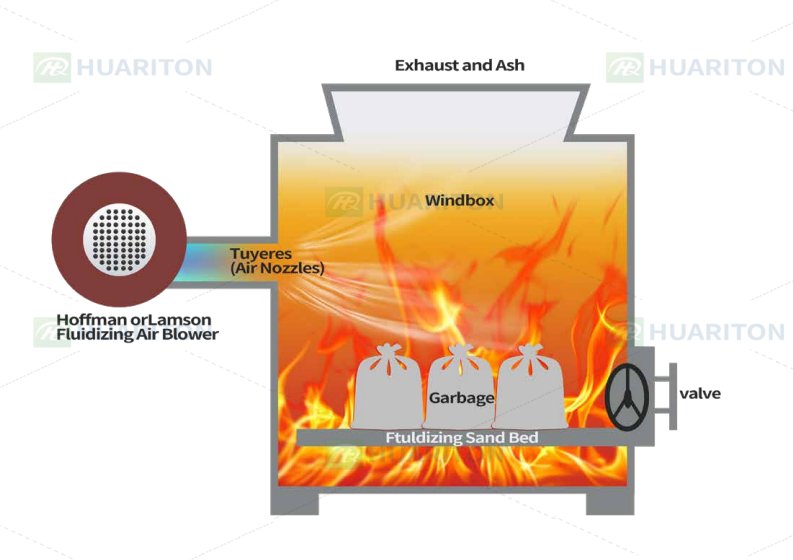

How HIS Series Gasification Incinerator Works
| Name | HIS-100 | HIS-200 | HIS-300 |
| Dimensions | 1500*660*800mm(L*W*H) | 2400*920*1000mm(L*W*H) | 3800*1150*1200mm(L*W*H) |
| Entrance size | 580*210mm(L*W*H) | 1200*330mm(L*W*H) | 2000*380mm(L*W*H) |
| Incineration capacity | 60-120kg/h | 200-300kg/h | 300-400kg/h |
| Blower | 0.55kW | 1.1kW | 1.1kW 2sets |
| Voltage | 220V or customizable | ||
| Fuel | No fuel required | ||
| Feeding method | Manual | ||
| Ignition method | Automatic | ||
| Incineration temperature | 600~800 degrees | ||
| Floor space | 1500*660mm | 2400*920mm | 3800*1150mm |
| Steel plate thickness | Outer 4mm, Inner 8mm | Outer 6mm, Inner 10mm | Outer 6mm, Inner 12mm |
| Weight | 245kg | 740kg | 1100kg |
No. After the initial ignition, the gasification process is sustained by the combustible syngas generated from the waste, significantly reducing auxiliary fuel consumption.
It is suitable for organic solid waste, agricultural and forestry waste, biomass, paper, wood, and other combustible non-hazardous waste materials.
Yes. The HIS Series features optimized gasification combustion and an integrated flue gas treatment system to reduce smoke, odor, and pollutant emissions.
Yes. It is equipped with an intelligent control system that simplifies operation, maintains stable combustion, and reduces manual intervention.
Yes. Huariton offers multiple capacity options and can customize configurations to meet different waste treatment requirements and project needs.
