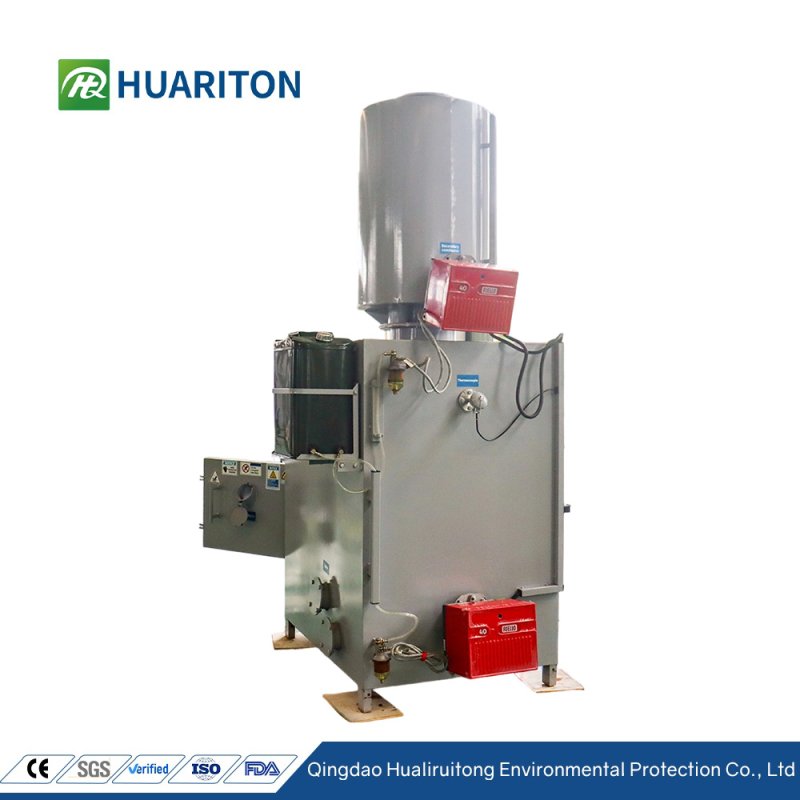

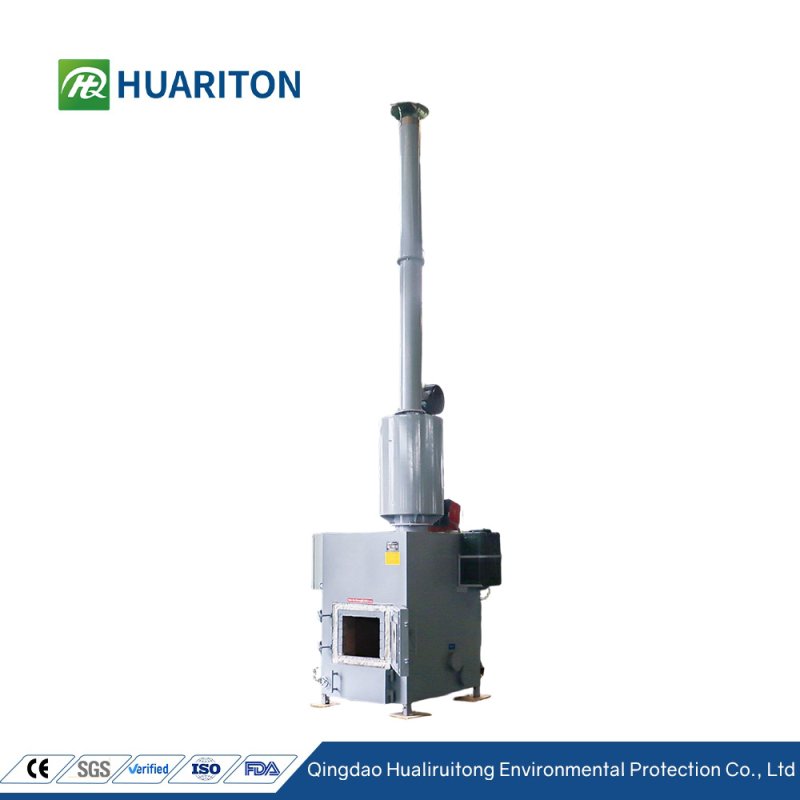

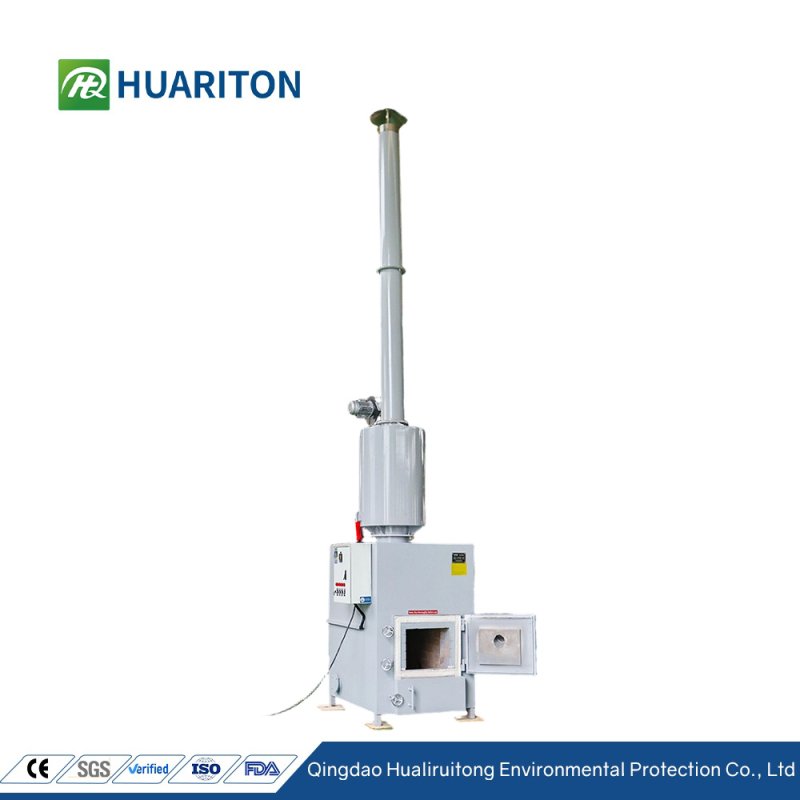

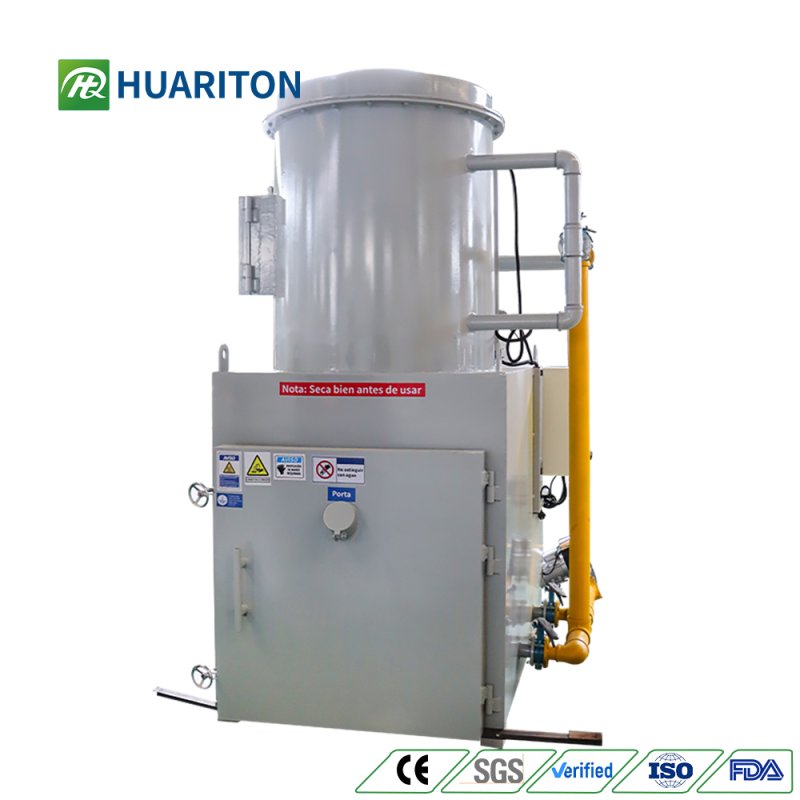

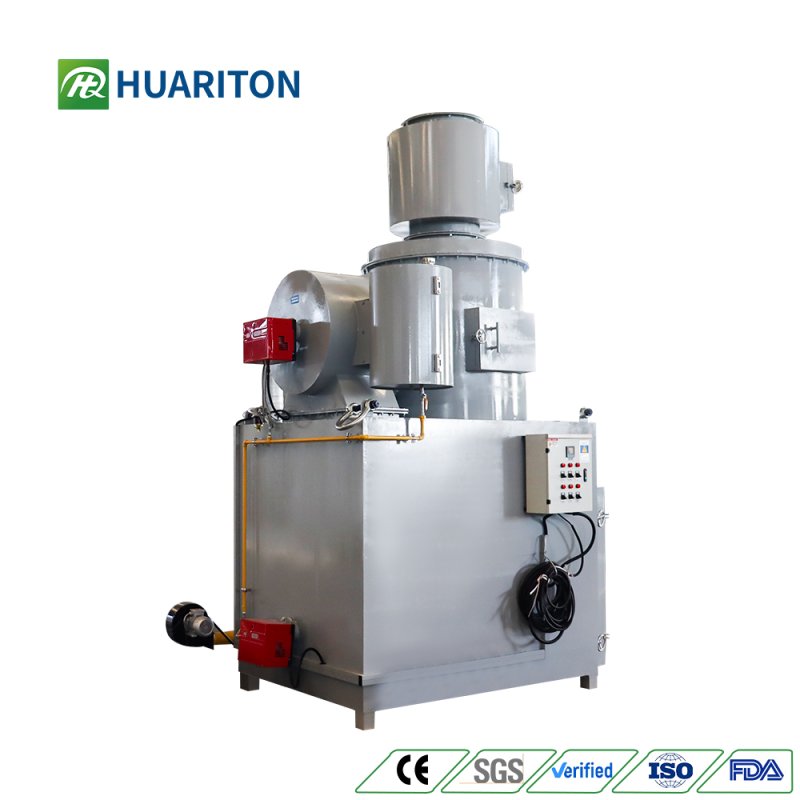

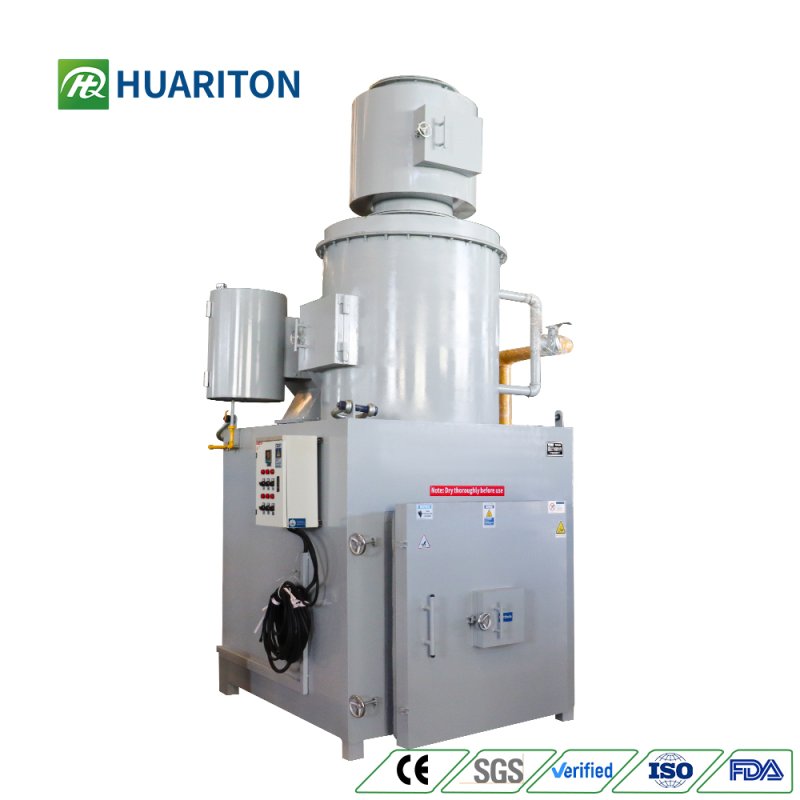

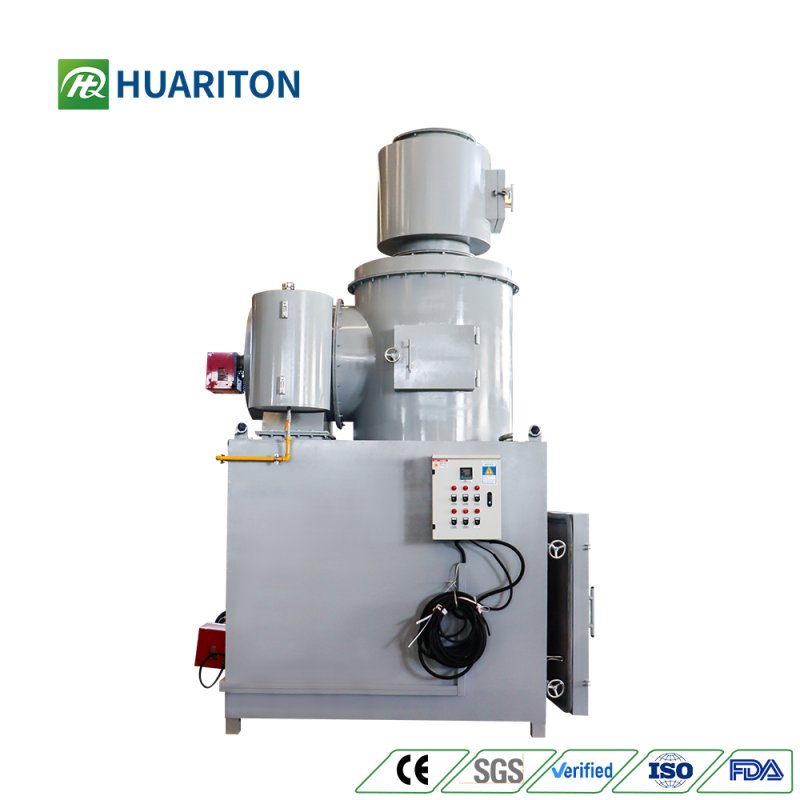

The HI Series is the premium model in the HIF product family, specifically designed for medical waste treatment applications.
Featuring an optimized structure and practical design, this series is ideal for the safe disposal of medical waste generated by hospitals, clinics, and healthcare facilities. During the primary combustion stage, controlled oxygen conditions help reduce incomplete combustion products. The combustible gases and volatile compounds generated are then thoroughly oxidized in the high-temperature secondary combustion chamber, achieving effective pathogen destruction and safe, volume-reduced treatment of medical waste.
With advanced air supply optimization technology and an integrated blower system, the combustion process is enhanced for higher efficiency, while exhaust emissions are further reduced to achieve cleaner and more environmentally responsible operation.
Features
Compact Design with Powerful Performance
Delivers excellent burning capacity while maintaining a compact structure that fits easily into a 40ft container, ensuring convenient transportation and quick installation.
Advanced Design for Effective Waste Disposal
Reaches temperatures of up to 1200°C to achieve thorough waste combustion, reducing residual ash and improving overall disposal efficiency.
Other Features
· Effective Pathogen Destruction: High-temperature combustion destroys bacteria, viruses, and other harmful microorganisms, ensuring safe medical waste disposal.
· Complete Waste Treatment: Secondary combustion technology improves combustion efficiency and reduces smoke, odor, and harmful emissions.
· Significant Volume Reduction: Converts medical waste into a small amount of inert ash, reducing disposal costs and landfill pressure.
· Safe & Hygienic Operation: Provides a reliable solution for infectious and hazardous waste management.
Flexible Fuel Options: Supports diesel, natural gas, LPG, and dual-fuel configurations for different operating conditions.
· Easy Installation & Maintenance: Compact design with simple operation, suitable for on-site waste treatment.
Applications
HI series can be used in a wide variety of locations and settings. Here are some of the most common places where it is used:
Hospitals & Clinics:
Used for disposal of infectious waste, contaminated materials, and medical disposables.
Laboratories & Research Centers:
Treats biological waste, experimental materials, and laboratory residues.
Veterinary Facilities:
Handles animal medical waste and related biological waste.
Pharmaceutical & Healthcare Industries:
Processes expired products, contaminated packaging, and production waste.
Quarantine & Public Health Facilities:
Provides safe treatment for infectious and regulated waste.

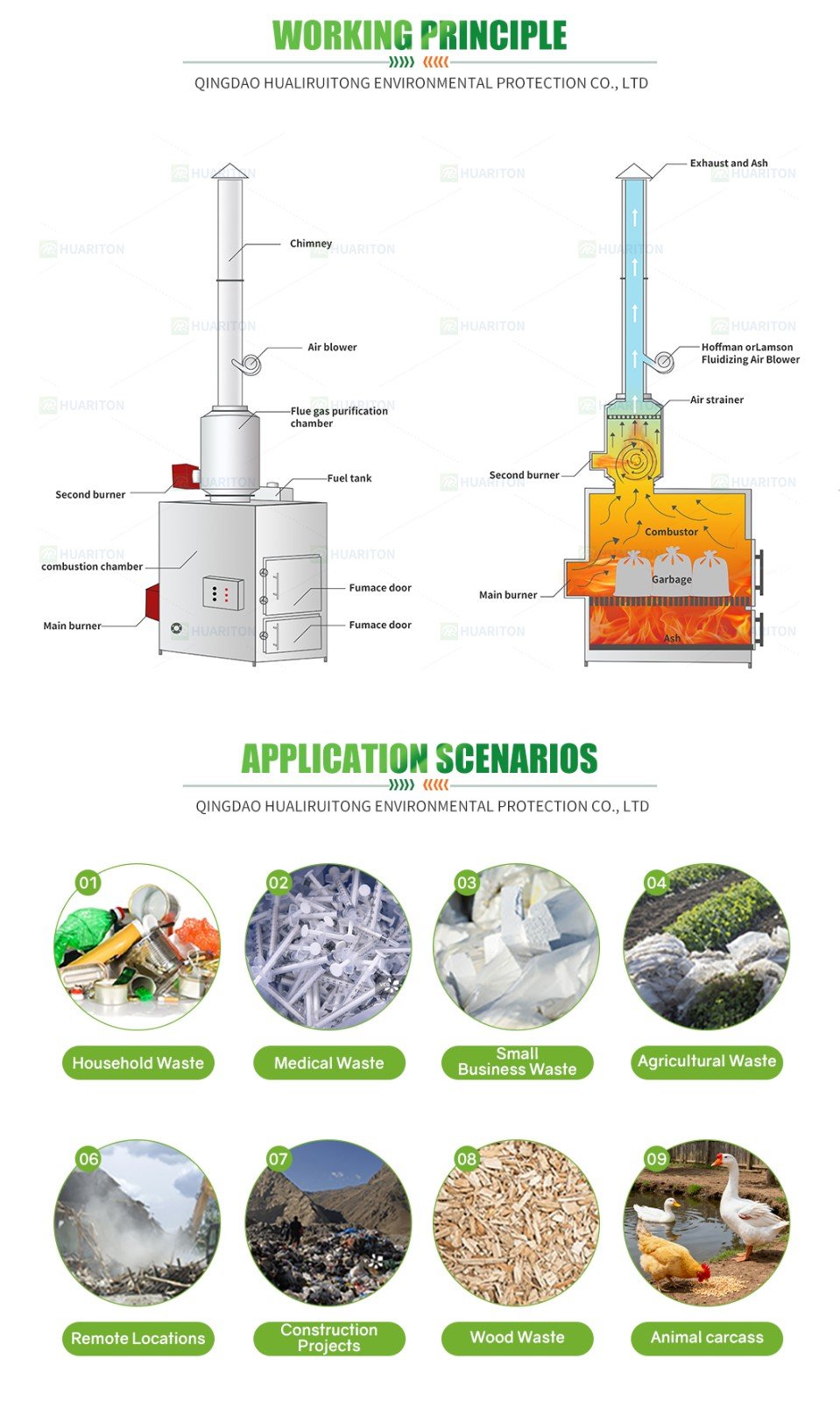

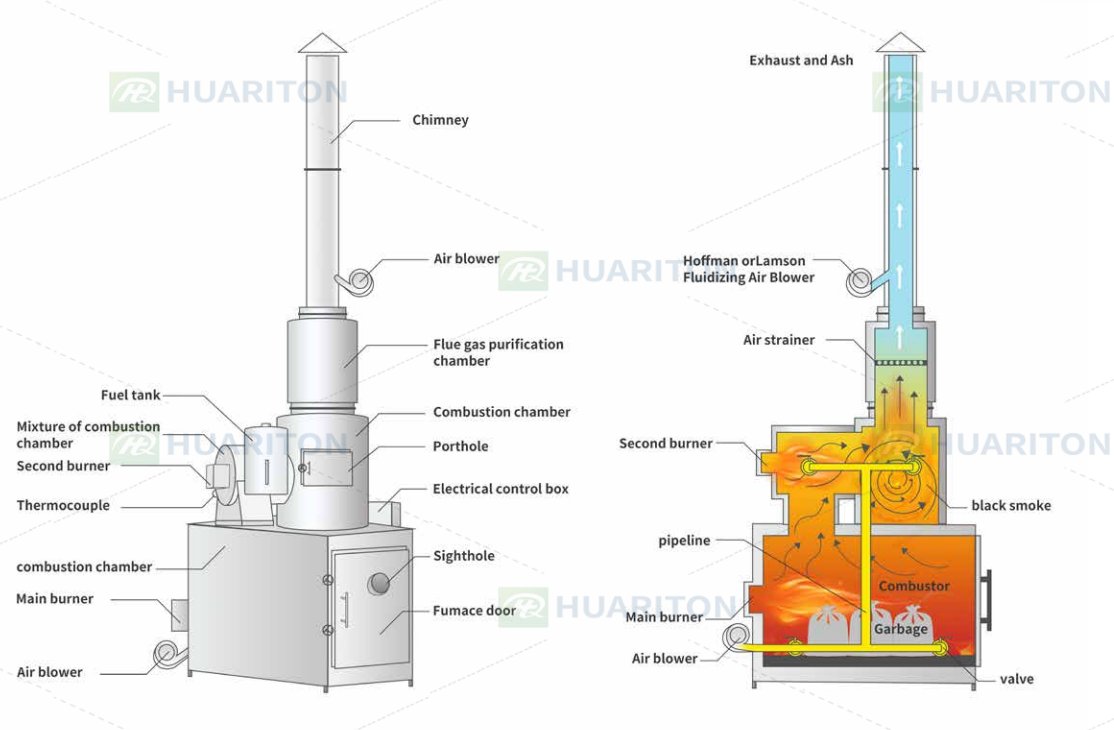

How HI series Medical Waste Incinerator Work
| NAME | HI-50 | HI-100 | HI-200 | HI-300 | HI-500 |
| Dimensions | 1800*1150*2850mm(L*W*H) | 2000*1350*3550mm（L*W*H） | 2300*1500*3000mm（L*W*H） | 2500*1600*3950mm（L*W*H） | 3200*2200*5150mm（L*W*H） |
| Garbage entrance size | 600*600mm(W*H) | 700*800(W*H) | 750*900(W*H) | 900*1000mm（W*H） | 1100*1200mm（W*H） |
| Incineration capacity | 30~50kg/h | 100~120kg/h | 150~200kg/h | 200~300kg/h | 350~500kg/h |
| Induced draft fan | 0.75 kW | 0.75 kW | 1.1 kW | 2.2kW | 3kW |
| Burner | 2 Sets | ||||
| Voltage | 220V or customizable | ||||
| Fuel | Standard configuration is diesel; LPG and natural gas are optional. | ||||
| Material | Shell: Welded steel plate. Firewall: monolithic prefabrication of refractory bricks and refractory concrete | ||||
| Weight | 2300kg | 3500kg | 4600kg | 5600kg | 8400kg |
For more specifications, please contact our team of experts.

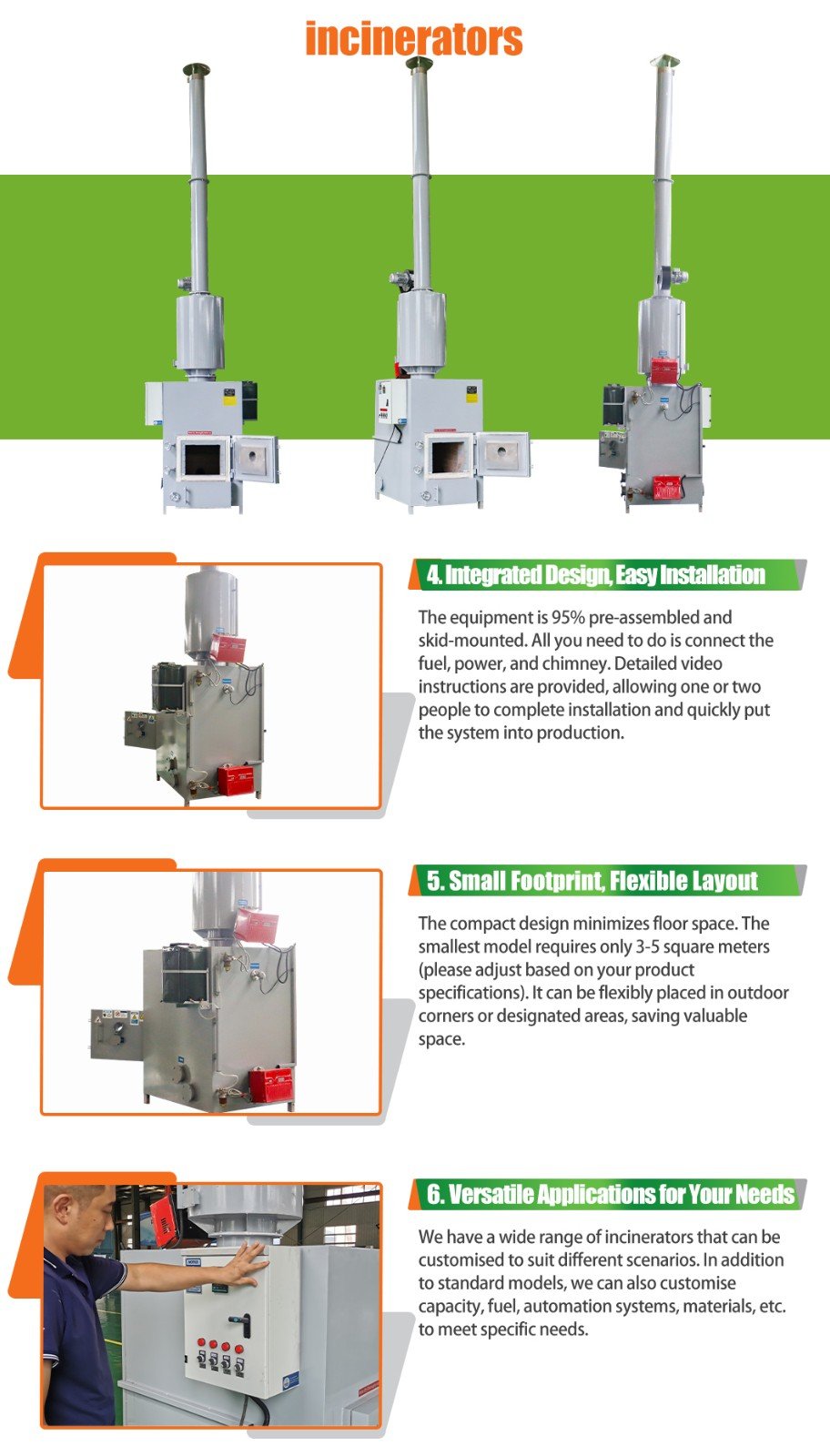

It's not complicated. 95% of our equipment comes pre-assembled at the factory. All you need to do is connect the fuel lines, power source, and chimney. We provide detailed installation videos and manuals, and we offer 24/7 online engineer guidance. For larger projects, we can send engineers to perform on-site installation and commissioning (extra charge).
The whole machine is under warranty for one year (12 months), excluding consumable parts such as refractory materials. We promise to provide lifelong technical support and preferential spare parts supply.

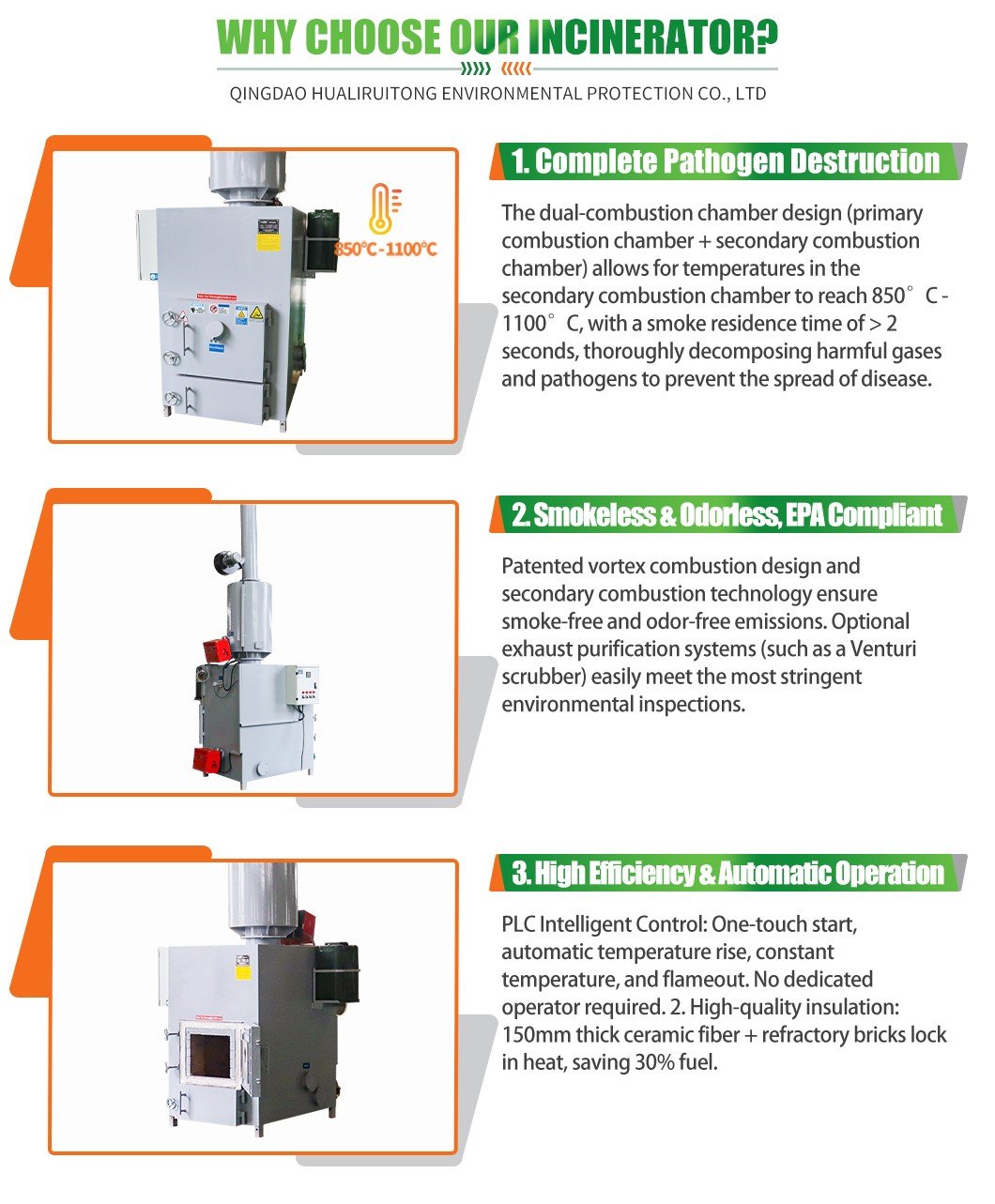

Yes. Our core technology lies in a dual-combustion chamber design, ensuring that the flue gases remain above 850°C for two seconds. This is essential for meeting DEFRA and EPA standards. We have successfully passed multiple local environmental protection agency inspections.
Consumption depends on the type of waste you're processing (e.g., high-moisture animal waste consumes more fuel). For example, the YHI-100 consumes approximately 7-12 L/hour of diesel fuel under stable combustion conditions. Our intelligent control system minimizes fuel consumption.
The minimum order quantity is 1 set (MOQ: 1 Set). Standard models typically require a delivery time of 20-25 working days.
