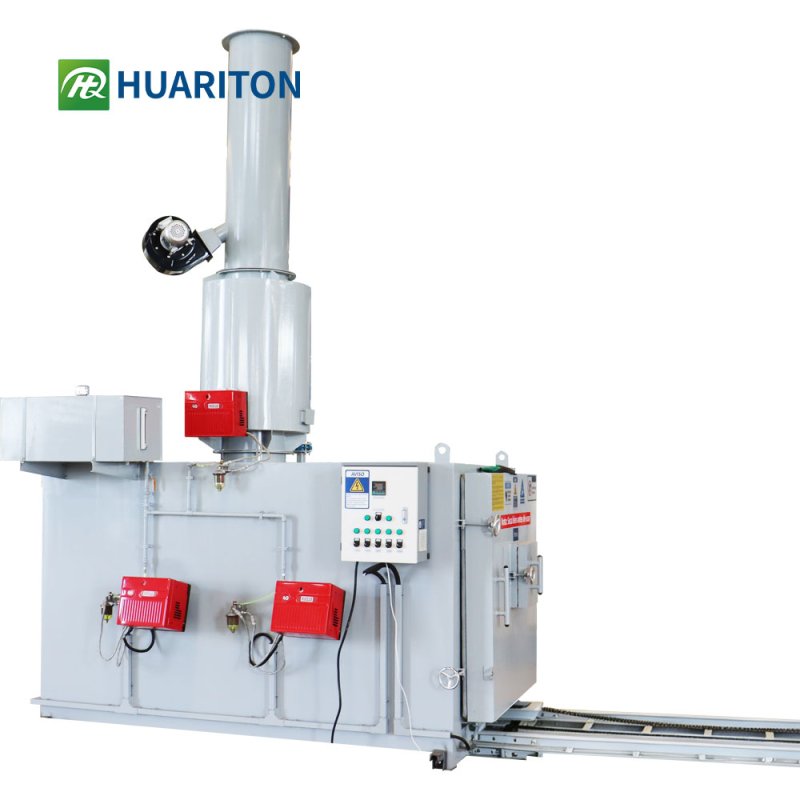

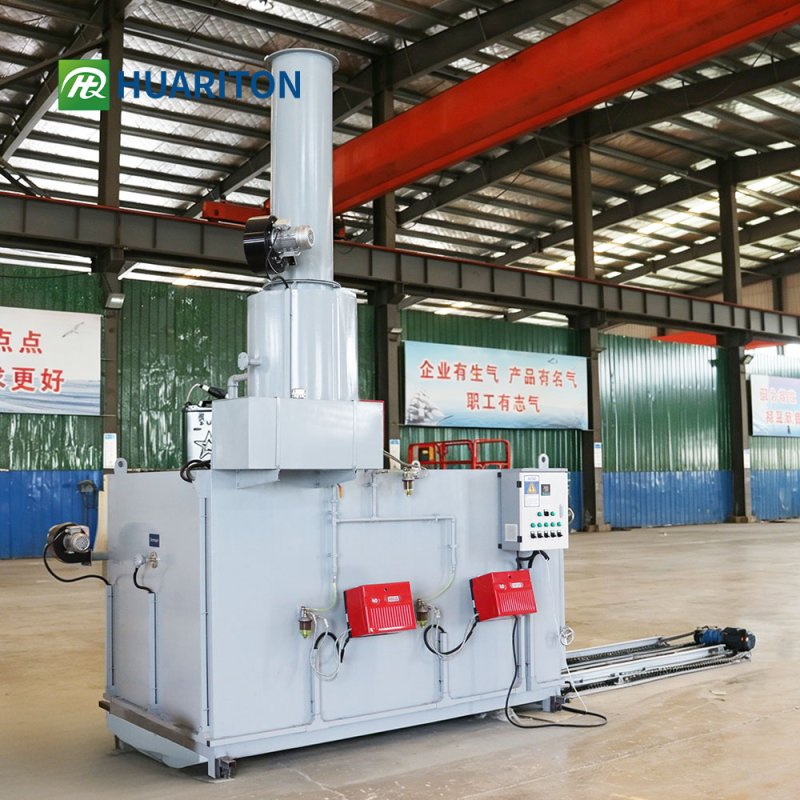

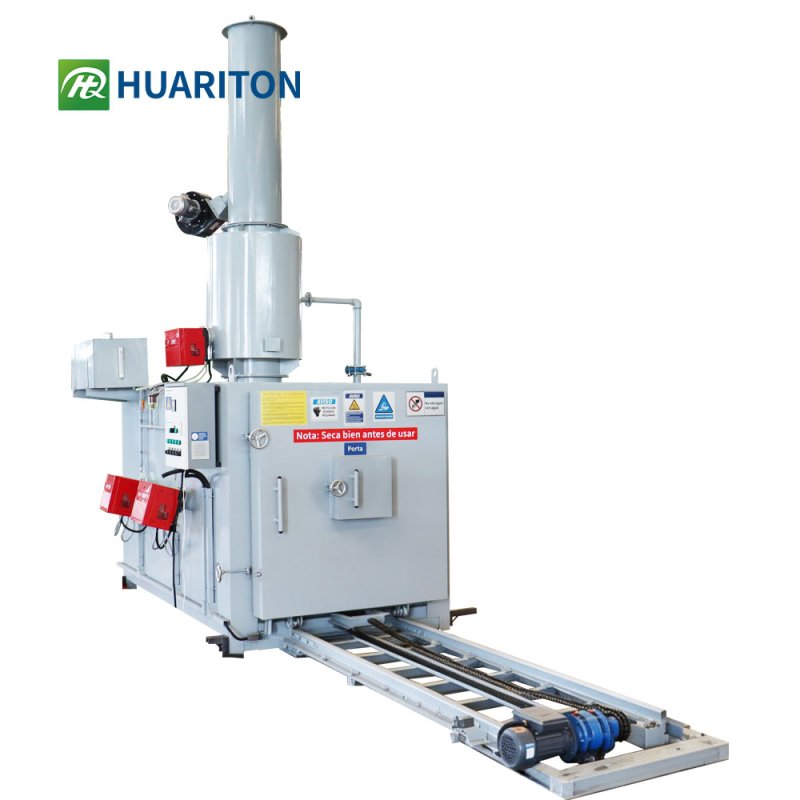

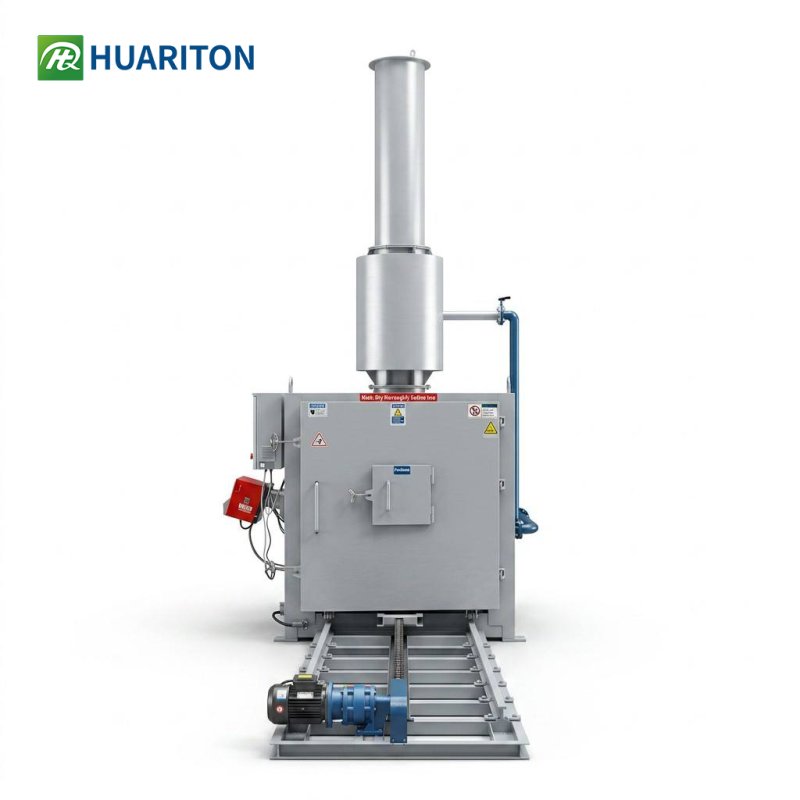

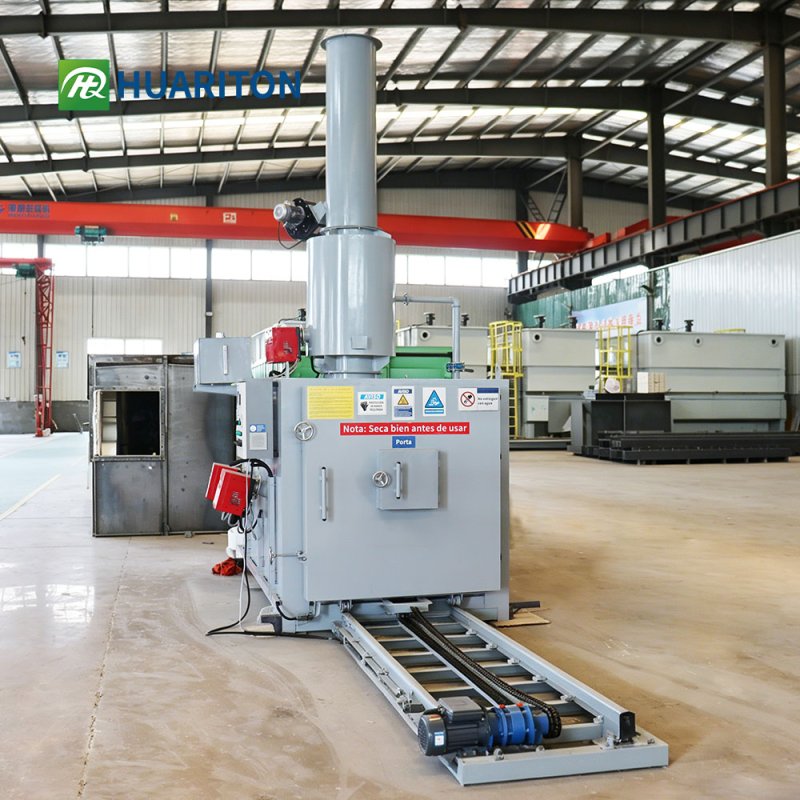

The HIR-200D Series is specifically designed for the dignified and efficient cremation of human remains, providing reliable performance for individuals of all ages.
The cremator is equipped with a manual or electric sliding loading bed, ensuring smooth and safe loading and unloading throughout the cremation process. Its ergonomic design supports respectful farewell ceremonies in funeral homes and crematoriums while also meeting the professional cremation requirements of hospitals and mortuaries.
Featuring high-temperature pyrolysis and secondary combustion technology, the HIR-200D Series ensures complete combustion within a sealed chamber, delivering efficient, clean, and environmentally responsible cremation. The optimized combustion system minimizes smoke, odor, and emissions while providing stable performance, high thermal efficiency, and reliable operation.
Features
Flexible Fuel Options
Available for diesel, natural gas, LPG, or dual-fuel operation to suit local energy supplies.
Customizable Capacity
Multiple models and configurations are available to meet the requirements of crematoriums, hospitals, and funeral service providers.
Other Features
Efficient Cremation: Dual-chamber combustion ensures complete cremation with consistent high-temperature performance.
Low Fuel Consumption: Optimized burner system reduces operating costs without compromising efficiency.
Clean Emissions: Advanced combustion technology minimizes smoke, odor, and harmful emissions.
Easy Operation: PLC control with automatic temperature management simplifies daily operation.
Reliable & Durable: Premium refractory materials provide long service life and reduce maintenance.
Applications
Public Crematoriums
High-efficiency cremation services for municipal and regional facilities.
Funeral Homes
Reliable cremation solutions for daily funeral operations.
Hospitals
Safe cremation for unclaimed bodies and special medical cases where permitted.
Religious & Memorial Centers
Cremation services that meet local cultural and operational requirements.
Government Facilities
Used in public service and emergency response programs.
Remote Communities
Ideal for areas with limited access to centralized cremation facilities, providing an independent and efficient solution.

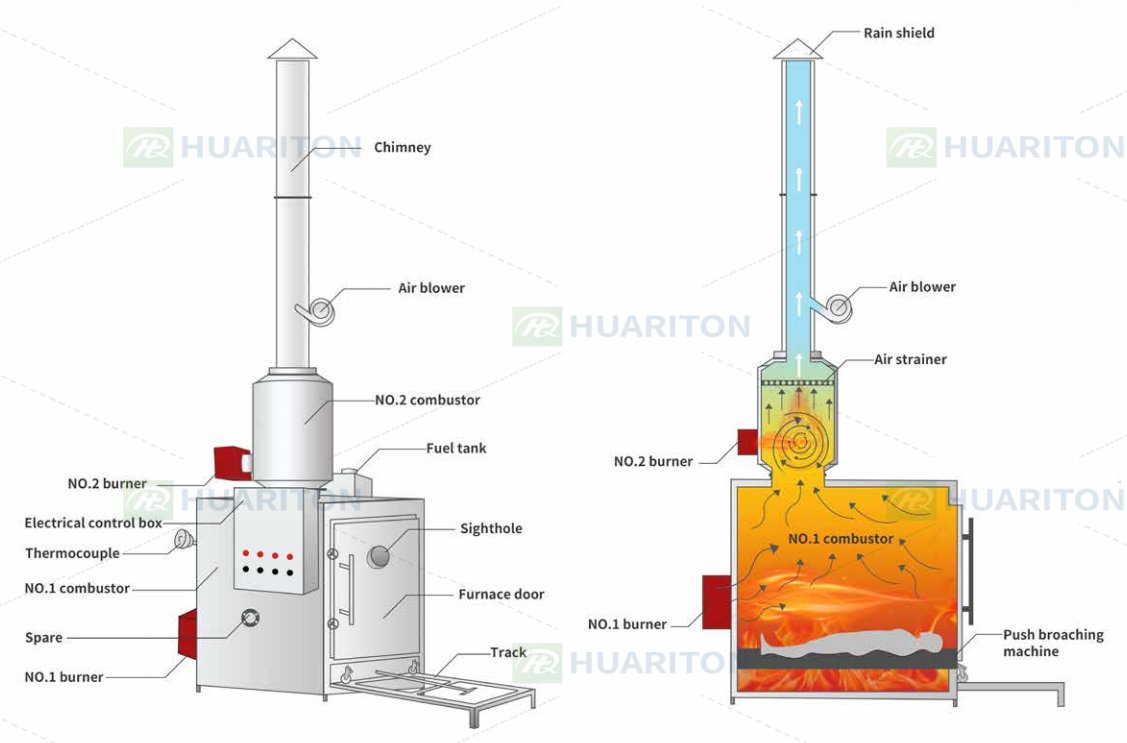

How HIR-200D series Human Cremation Incinerator Works
| Name | HIR-200D |
| Dimensions | 2900*1600*2700mm(L*W*H) |
| Furnace entrance size | 2300*1000*800mm(L*W*H) |
| Main combustion chamber booster | 100,000 kcal (2 units) |
| Secondary combustion chamber booster | 100,000 kcal |
| Main combustion chamber temperature | 700-900 degrees Celsius |
| Maximum operating temperature | 1200 degrees Celsius |
| Fuel | Light diesel |
| Voltage | 220V |
| Blower power | 0.55kW |
| Induced draft fan | 1.1kW |
| Total installed power | 2.2kW |
| Average energy consumption | 10-15kg/unit |
| Incineration bed control method | Electric |
| Ignition method | Automatic |
| Continuous incineration time | 70minutes/unit |
| Average cooling time | 15-20minutes/unit |
| Unit noise level | Less than 65 decibels |
| Designed operating life | 15years |
| Material | Casing:Carbon steel, Furnace:High-alumina refractory bricks, Insulation:Alumina silicate fiber |
| Chimney | 6 meters |
| Package size | Package1:1580*590*9750mm, Package2:1500*1520*1700mm, Package3:3080*1860*1950mm |
