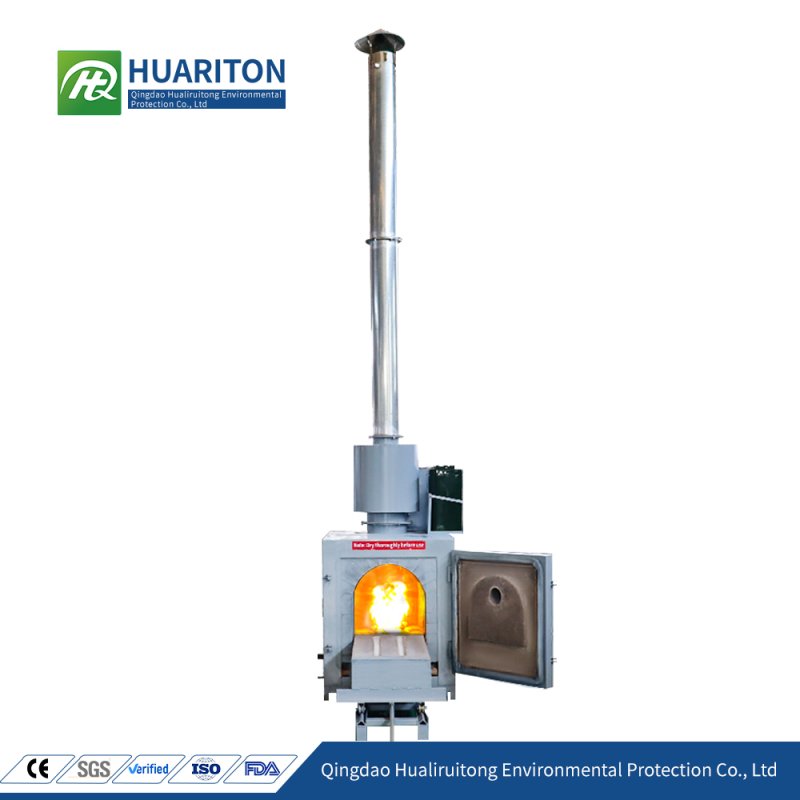

The HIA series is specifically designed for the safe and efficient treatment of small to medium-sized animal carcasses, including deceased pets (dogs, cats, rabbits, etc.), livestock (pigs, sheep, poultry), laboratory animals, and wild animal remains.

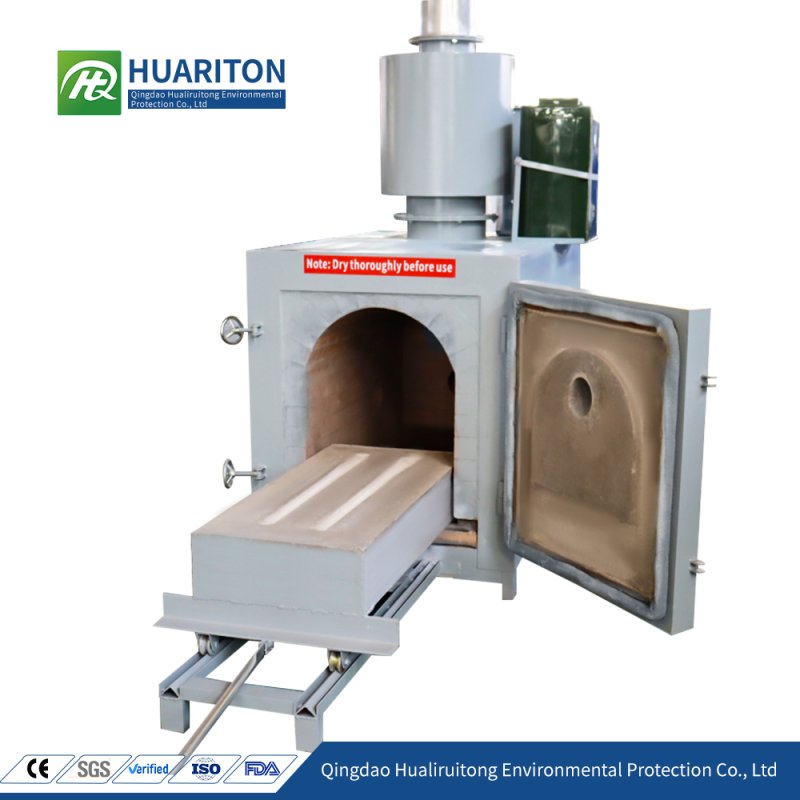

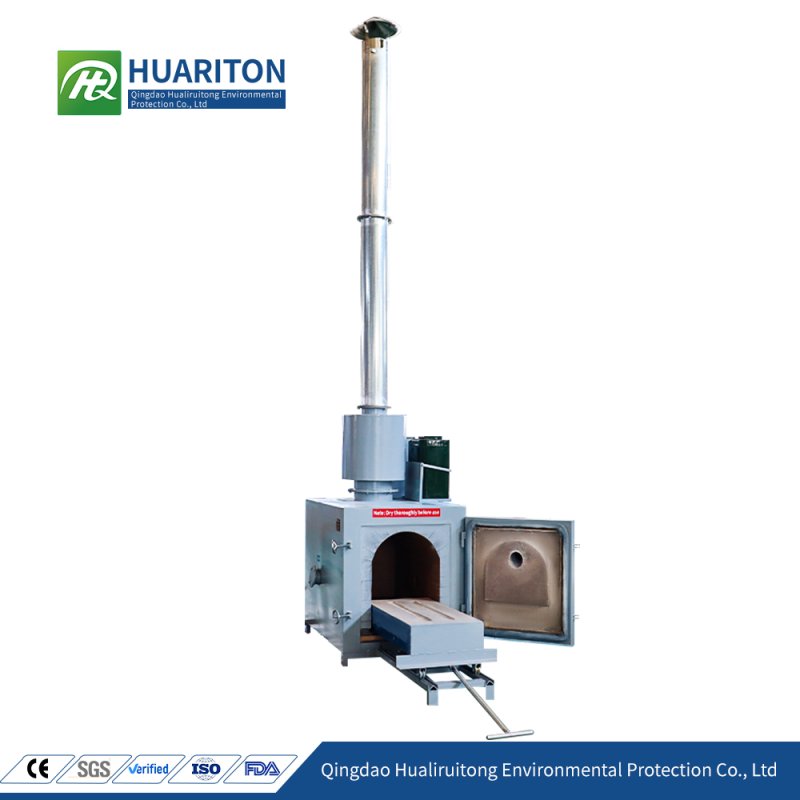

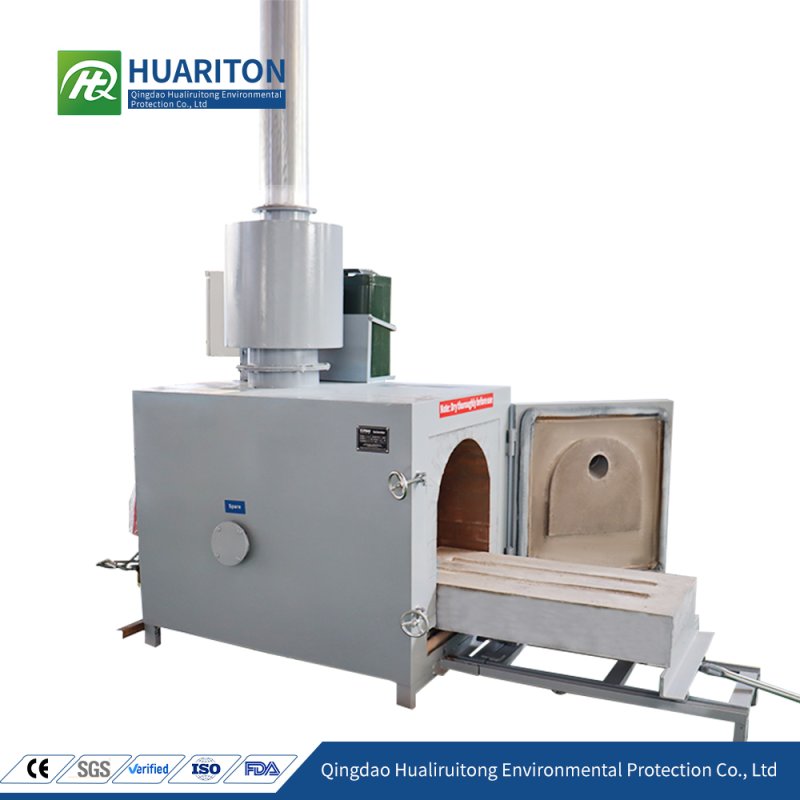

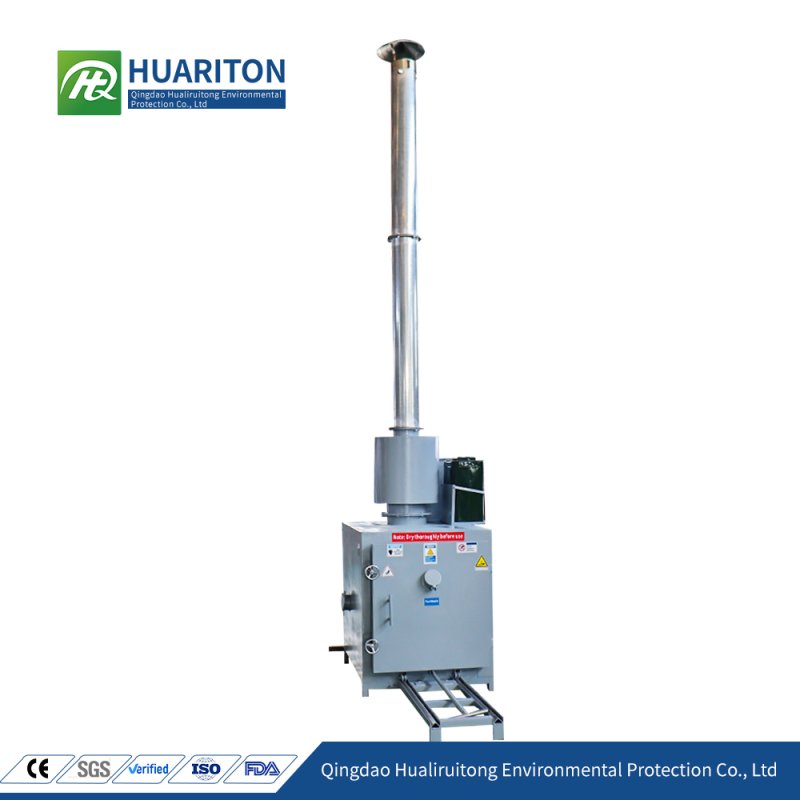

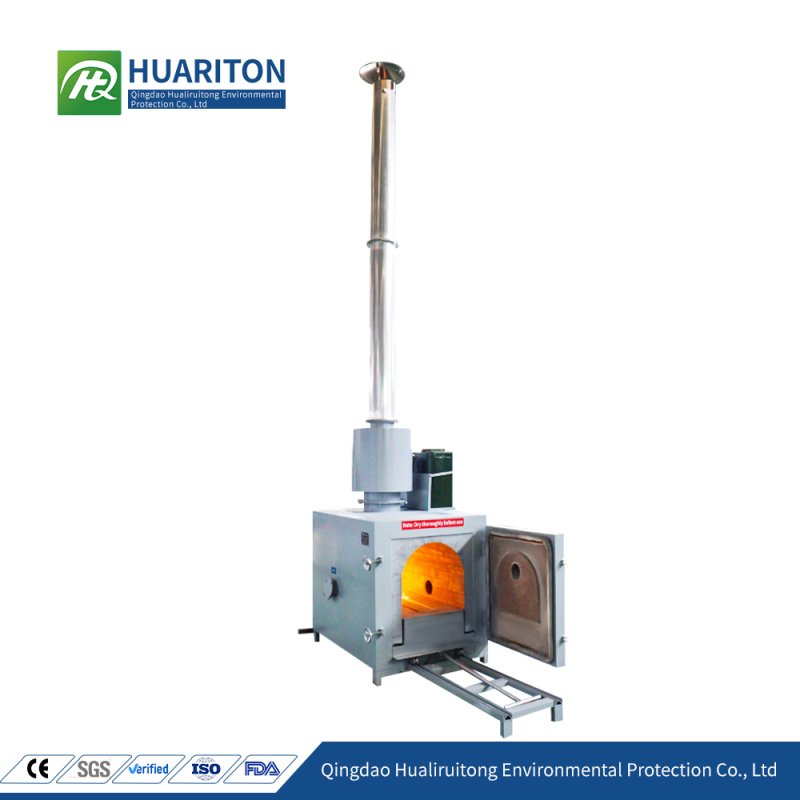

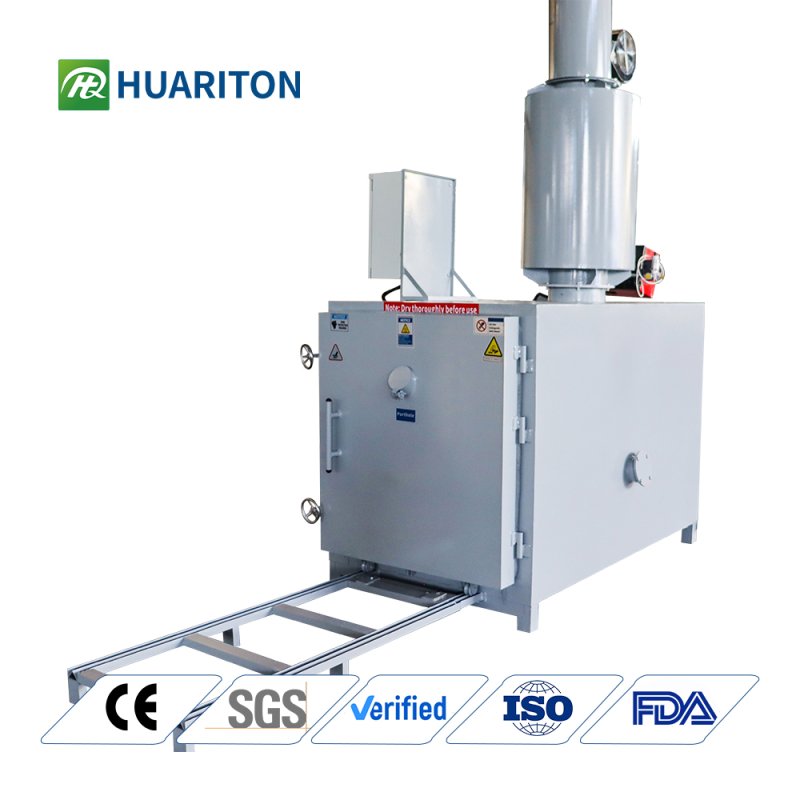

The incinerator is equipped with a manual or electric sliding bed system, allowing smooth loading and unloading before and after incineration. It provides a respectful and hygienic solution for veterinary clinics and pet funeral homes, while also meeting the biosecure disposal requirements of livestock farms and animal quarantine facilities.
Featuring high-temperature pyrolysis and secondary combustion technology, the HIA series effectively oxidizes and decomposes animal carcasses inside a sealed combustion chamber, achieving safe, volume-reduced, and environmentally responsible treatment.
With its versatile design and flexible configuration options, this incinerator supports multiple applications and eliminates the limitations of single-purpose equipment.
Features
Compact Design with Powerful Performance
Delivers excellent burning capacity while maintaining a compact structure that fits easily into a 40ft container, ensuring convenient transportation and quick installation.
Advanced Design for Effective Waste Disposal
Reaches temperatures of up to 1200°C to achieve thorough waste combustion, reducing residual ash and improving overall disposal efficiency.
Other Features
· High Efficiency & Automatic Operation
PLC Intelligent Control: One-touch start, automatic temperature rise, constant temperature, and flameout. No dedicated operator required.
High-quality insulation: 150mm thick ceramic fiber + refractory bricks lock in heat, saving 30% fuel.

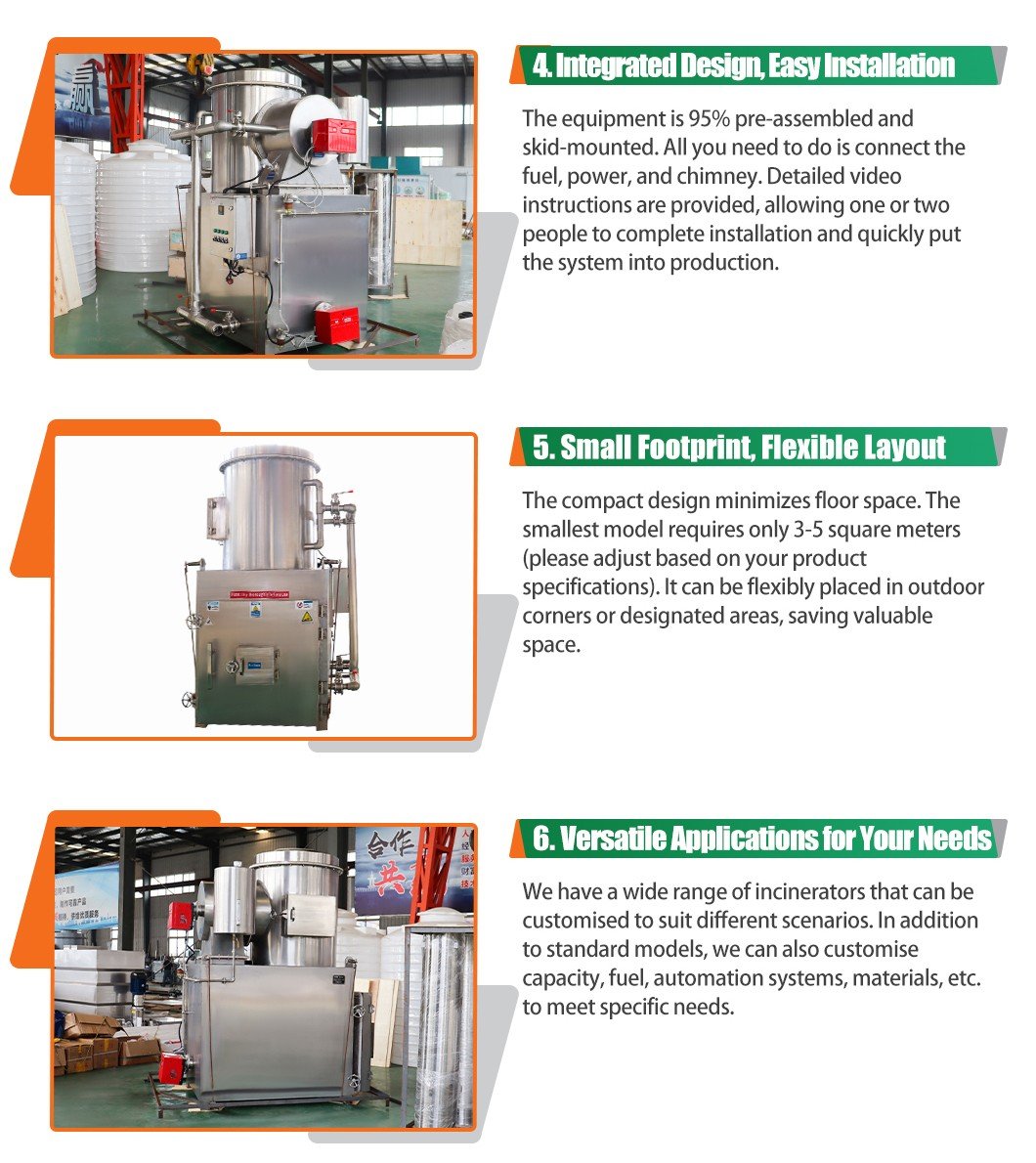

· Integrated Design, Easy Installation
The equipment is 95% pre-assembled and skid-mounted. All you need to do is connect the fuel, power, and chimney.
Detailed video instructions are provided, allowing one or two people to complete installation and quickly put the system into production.
· Small Footprint, Flexible Layout
The compact design minimizes floor space. The smallest model requires only 3-5 square meters (please adjust based on your product specifications).
It can be flexibly placed in outdoor corners or designated areas, saving valuable space.
Applications
HIA series can be used in a wide variety of locations and settings. Here are some of the most common places where it is used:
Livestock Farms
Disposal of dead pigs, cattle, sheep, goats, and other livestock caused by disease, accidents, or natural death.
Poultry Farms
Safe treatment of dead chickens, ducks, geese, and other poultry mortality to improve farm biosecurity.
Veterinary Clinics & Animal Hospitals
Disposal of deceased pets, laboratory animals, and medical biological waste.
Pet Crematoriums
Cremation of dogs, cats, and other companion animals with a clean and respectful process.
Slaughterhouses & Meat Processing Plants
Treatment of animal by-products, rejected carcasses, bones, and organic waste.
Animal Disease Control Centers
Emergency disposal of infected animals during disease outbreaks.
Zoos, Wildlife Centers & Laboratories: Safe disposal of deceased animals and biological remains.

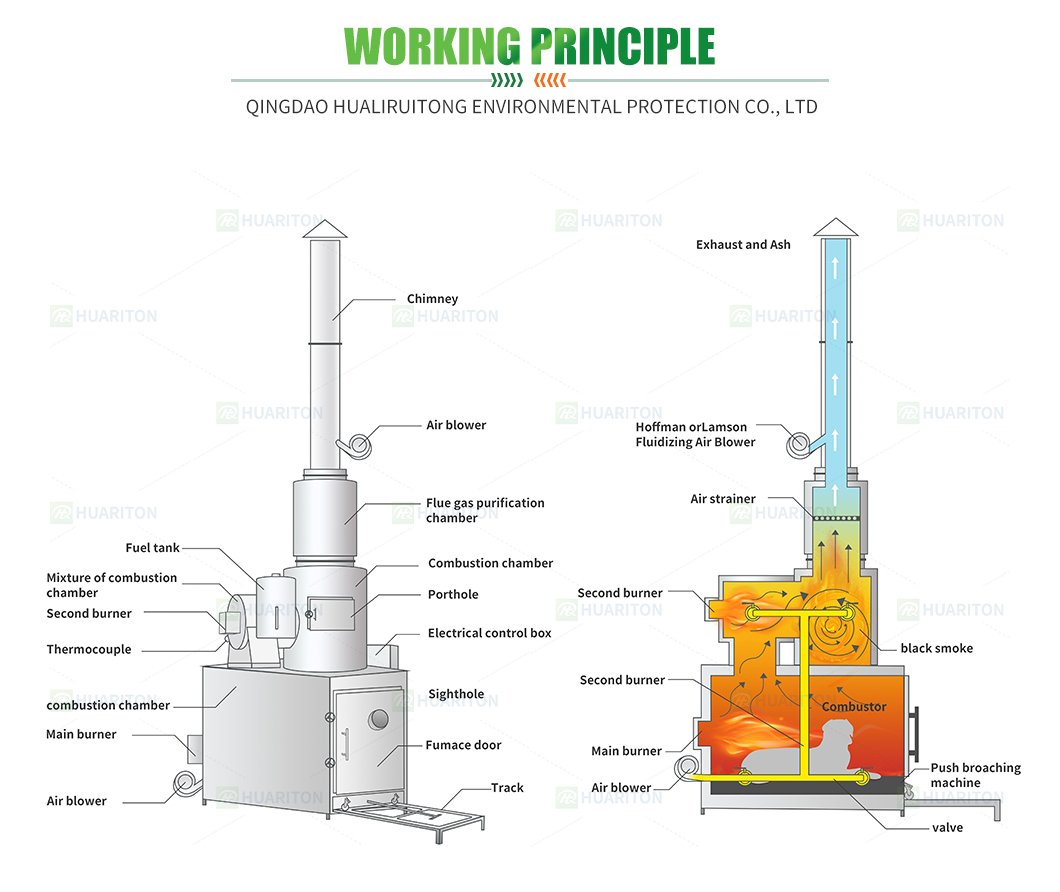

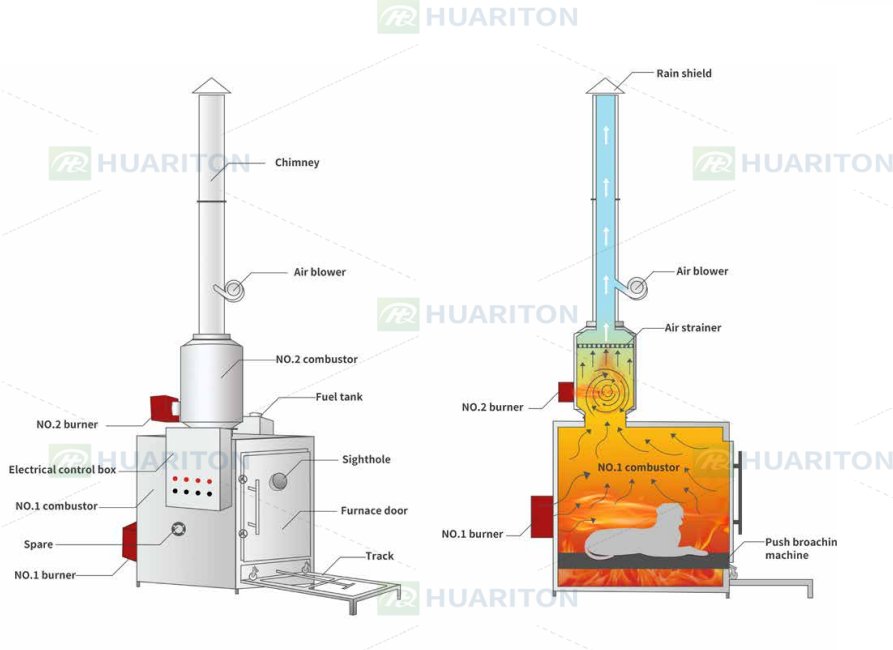

How HIA series Animal Incinerators Work
| Name | HIA-10 | HIA-50 | HIA-100 | HIA-200 | HIA-300 | HIA-500 |
| Dimensions | 1400*1100*1800mm (L*W*H) | 1400*1000*2100mm（L*W*H） | 1500*1100*2200mm（L*W*H） | 2000*1300*2600mm（L*W*H） | 2500*1400*2400mm（L*W*H） | 2900*1800*2800mm（L*W*H） |
| Entrance size | 1100*500*500mm (L*W*H) | 1100*600*500mm（L*W*H） | 1200*600*500mm（L*W*H） | 1400*800*700mm（L*W*H） | 1800*900*900mm（L*W*H） | 2300*1200*900mm（L*W*H） |
| Incineration capacity | 10~20kg/batch | 30~50kg/batch | 80~100kg/batch | 150~200kg/batch | 300~400kg/batch | 500~600kg/batch |
| Induced draft fan | None | 0.75kW | 0.75kW | 1.1kW | 1.1kW | 1.1kW |
| Blower | None | None | None | 0.18kW | 0.37kW | 0.37kW |
| Burner | 1sets | 2 sets | 3sets | |||
| Voltage | 220V | 220V or customizable | ||||
| Fuel | Standard configuration is diesel; LPG and natural gas are optional | |||||
| Fuel consumption per hour | 6-10L/batch | 15-30L/batch | 20-35L/batch | 35-45L/batch | 45-60L/batch | 50-70L/batch |
| Total power | 0.5kW | 1.5kW | 1.5kW | 2kW | 3kW | 3kW |
For more specifications, please contact our team of experts.
It's not complicated. 95% of our equipment comes pre-assembled at the factory. All you need to do is connect the fuel lines, power source, and chimney. We provide detailed installation videos and manuals, and we offer 24/7 online engineer guidance. For larger projects, we can send engineers to perform on-site installation and commissioning (extra charge).
The whole machine is under warranty for one year (12 months), excluding consumable parts such as refractory materials. We promise to provide lifelong technical support and preferential spare parts supply.
Yes. Our core technology lies in a dual-combustion chamber design, ensuring that the flue gases remain above 850°C for two seconds. This is essential for meeting DEFRA and EPA standards. We have successfully passed multiple local environmental protection agency inspections.
Consumption depends on the type of waste you're processing (e.g., high-moisture animal waste consumes more fuel). For example, the YHI-100 consumes approximately 7-12 L/hour of diesel fuel under stable combustion conditions. Our intelligent control system minimizes fuel consumption.
The minimum order quantity is 1 set (MOQ: 1 Set). Standard models typically require a delivery time of 20-25 working days.
