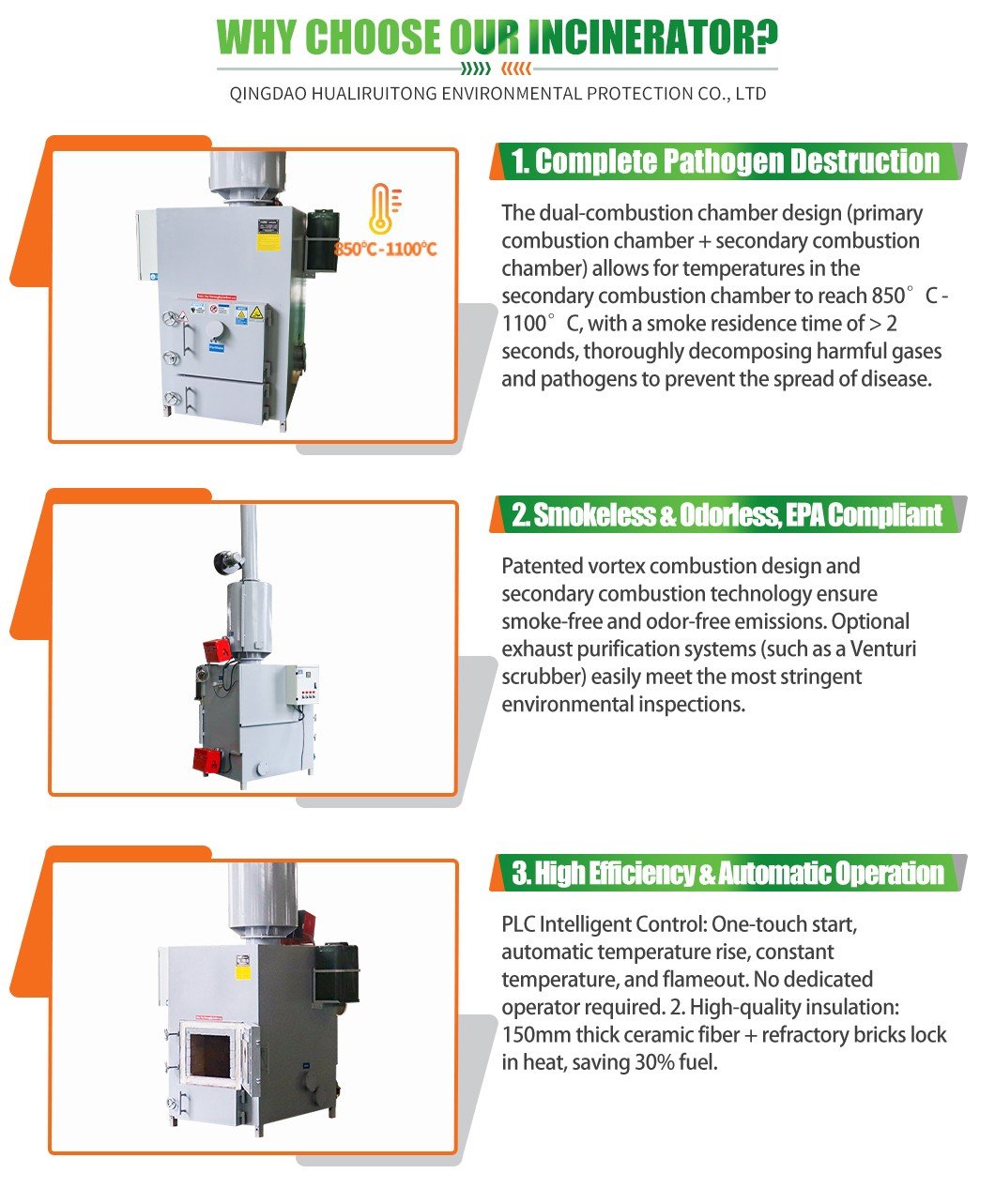

Complete Pathogen Destruction
The dual-combustion chamber design (primary combustion chamber + secondary combustion chamber) allows for temperatures in the secondary combustion chamber to reach 850°C - 1100°C, with a smoke residence time of > 2 seconds, thoroughly decomposing harmful gases and pathogens to prevent the spread of disease.
Smokeless & Odorless
Patented vortex combustion design and secondary combustion technology ensure smoke-free and odor-free emissions. Optional exhaust purification systems (such as a Venturi scrubber) easily meet the most stringent environmental inspections.

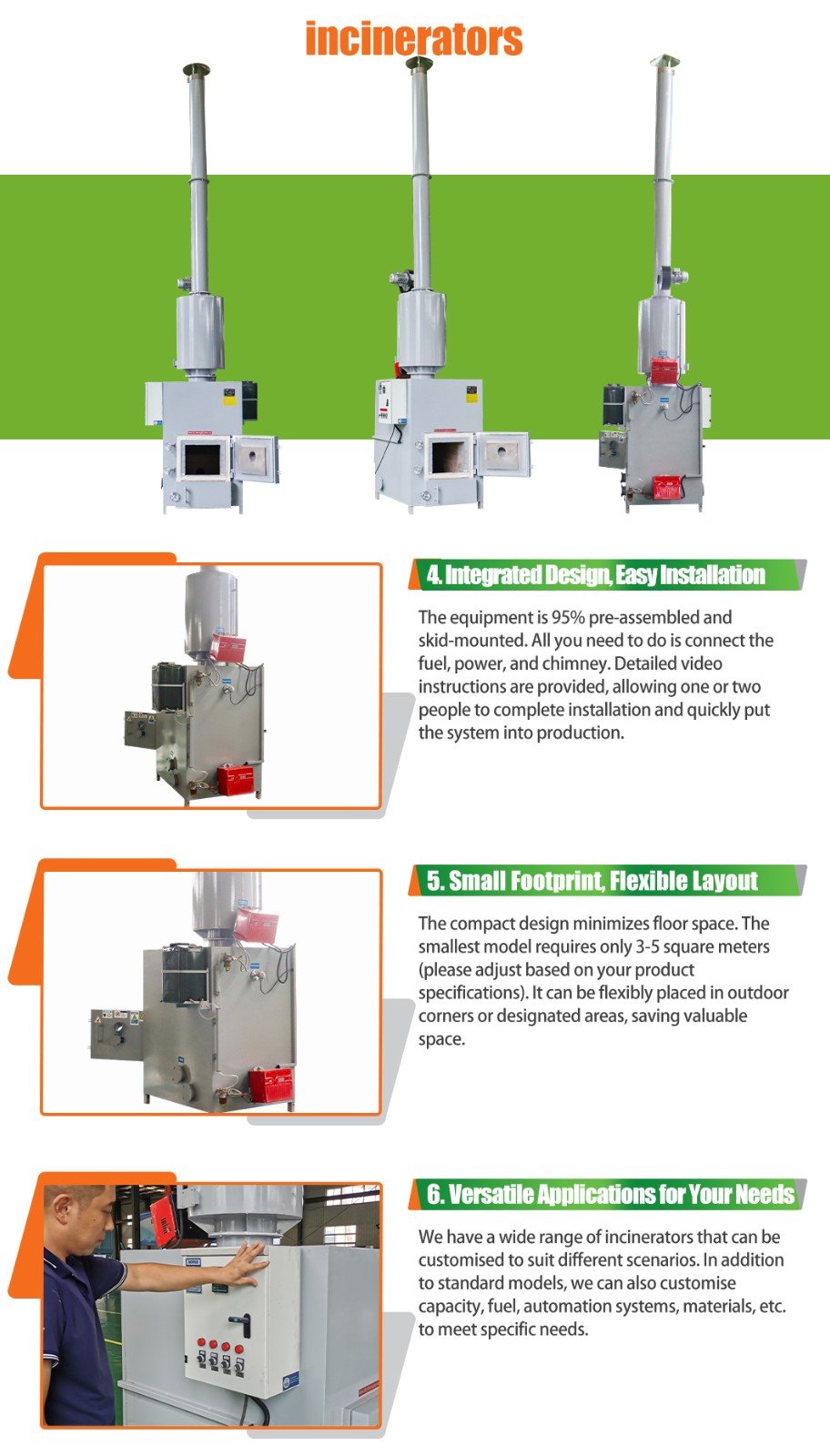

Integrated Design, Easy Installation
The equipment is 95% pre-assembled and skid-mounted. All you need to do is connect the fuel, power, and chimney. Detailed video instructions are provided, allowing one or two people to complete installation and quickly put the system into production.
Small Footprint, Flexible Layout
The compact design minimizes floor space. The smallest model requires only 3-5 square meters (please adjust based on your product specifications). It can be flexibly placed in outdoor corners or designated areas, saving valuable space.
Key Features and Advantages of HUARITON Incinerators

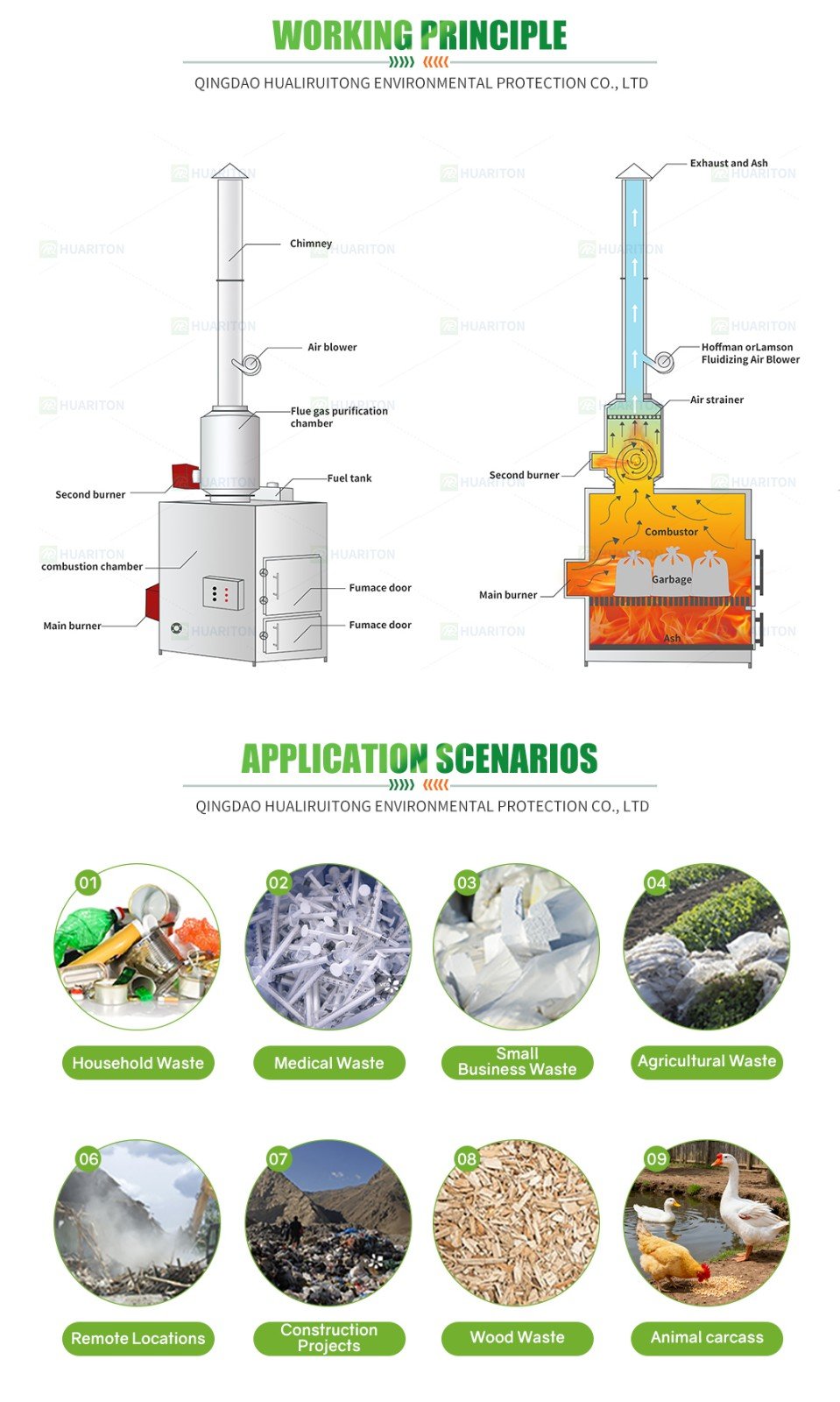

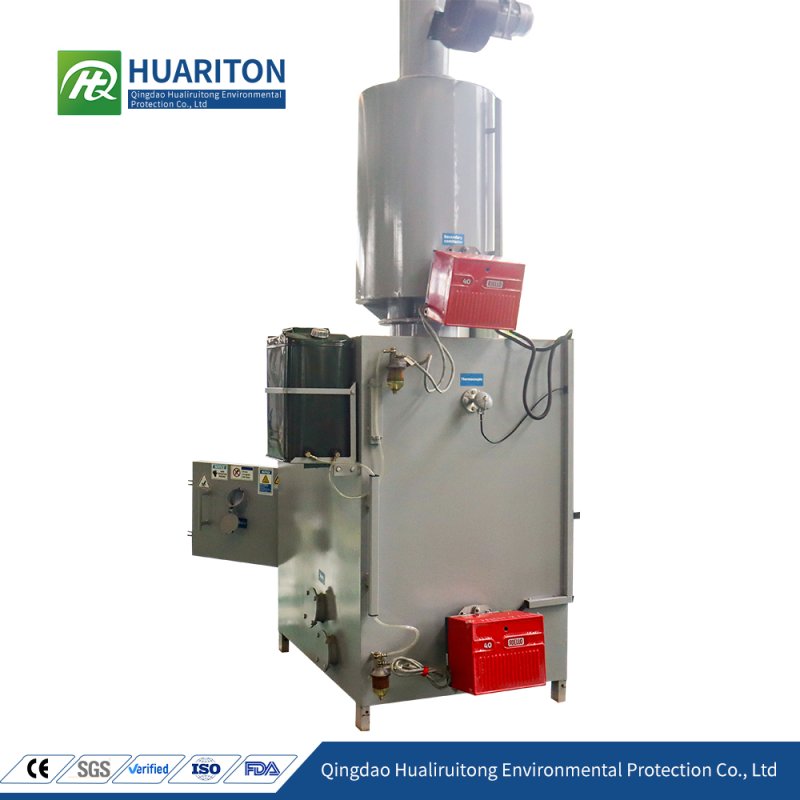

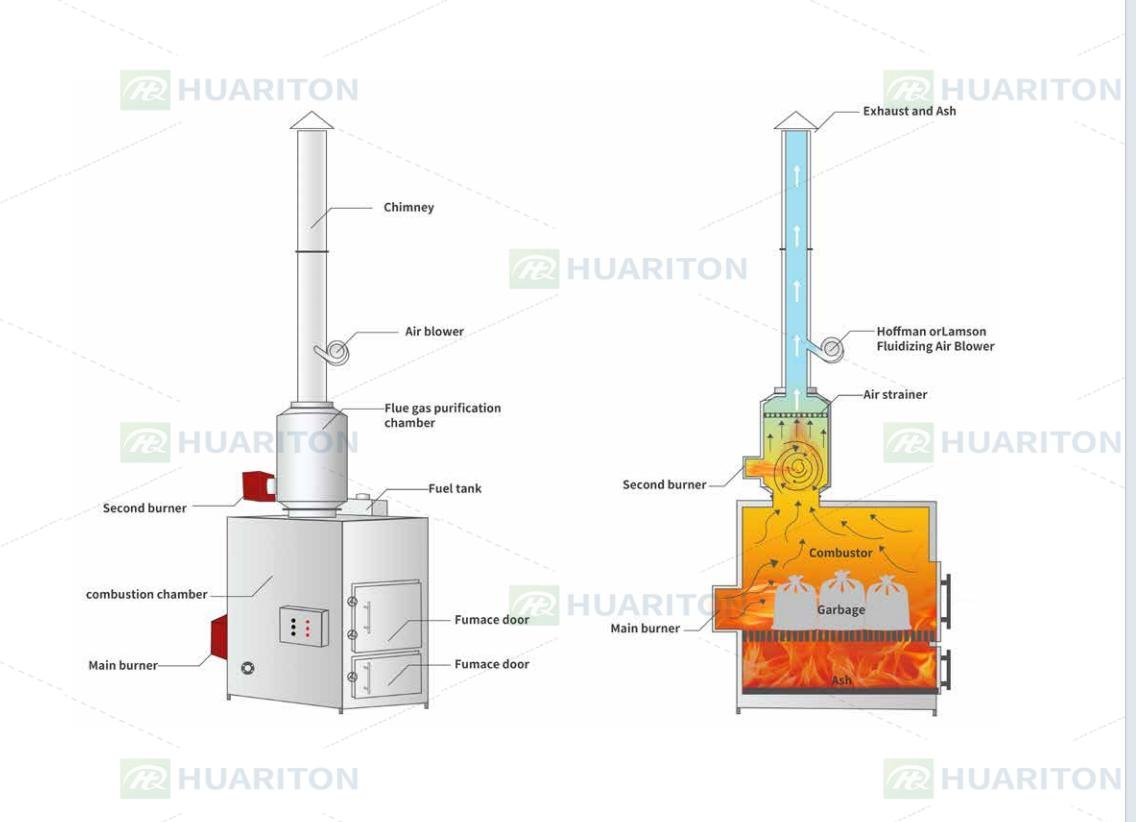

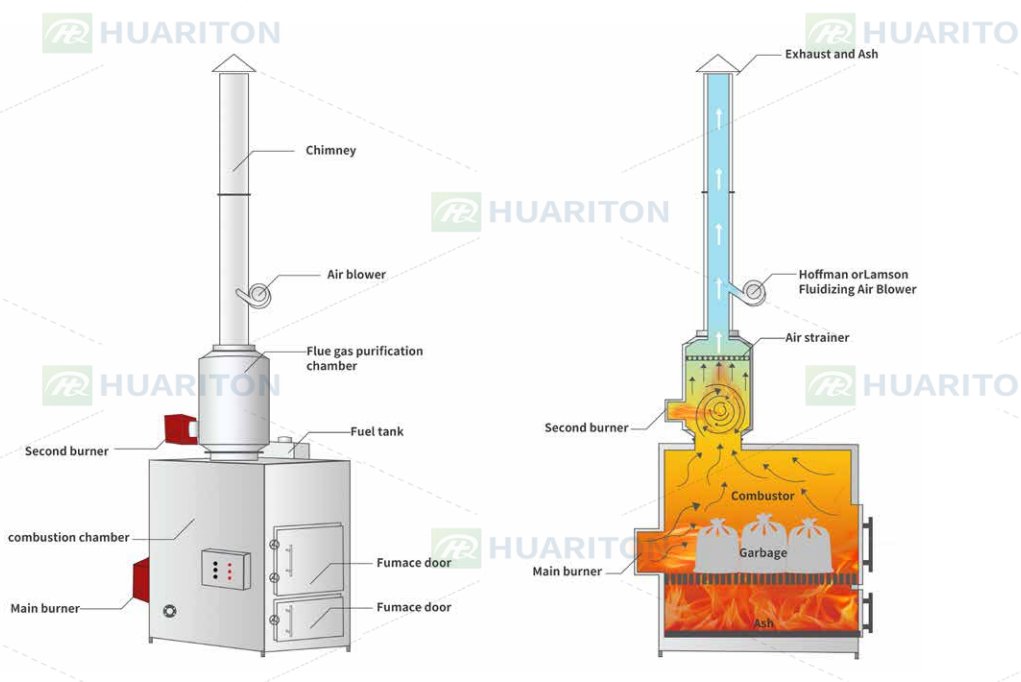

1/Double Combustion Chambers = Odourless & Smokeless
Primary Chamber (Pyrolysis): Burns animal carcass at 600 degrees Celsius - 800 degrees Celsius to minimize dust and volatile matter.
Secondary Chamber (Thermal Oxidizer): Re-heats the gas up to 850 degrees Celsius - 1100 degrees Celsius with gas residence time > 2.0s, completely destroying hazardous gases, smoke, and odors before exhaust.
2/Ultra-Durable Multi-Layer Refractory Lining (Up to 5 Years Lifespan)
Layer 1: High-Alumina Refractory Concrete (Resists up to 1600 degrees Celsius, direct flame impact).
Layer 2: Premium Insulating Bricks (Minimizes heat loss).
Layer 3: Ceramic Fiber Blanket (Keeps the outer steel shell cool, prevents burns).
3/One-Touch Intelligent PLC Control (Saves 15%-25% Fuel)
Automatic Temperature Modulation: The burner automatically fires up or dials back based on the real-time combustion status inside. No fuel is wasted once the carcass self-combusts.
We offer customized services tailored to your needs
1/ Structural & Capacity Customization
Chamber Dimensions Primary and secondary chamber volumes are calculated based on your carcass type.
Processing Capacity : 20-500 kg / batch
Fuel Type Configuration : Diesel/Natural Gas/ LPG/Dual-Fuel Hybrid
Electrical Voltage Adaptation : Single Phase: 110V / 220V / 240V ; Three Phase: 380V / 415V / 480V / 660V
2/ Emission & Environmental Compliance Customization
Basic Model: Dual combustion chambers + naturally cooled chimney (meets standards in most developing countries)
Standard Model: + Wet scrubber, for removing acidic gases
Strict Model: + Activated carbon filter + bag filter, meets EU EN 13501 and U.S. EPA standards
Huariton, manufacturer of incinerators with 20 years of experience
1.100% Real Factory with 20 Years Experience
Spanning over 20,000 square meters workshop. We welcome live video auditing via Zoom/WhatsApp at your local working hours.
2.In-House Thermodynamic R&D Team
Our engineers customize the secondary combustion chamber size based on your local emission standards (EU, US-EPA, etc.).
3.Strict 4-Step Quality Control
Steel plate thickness check
Pressure & leak testing of fuel piping
72H continuous refractory pre-heating test
Professional flue gas analyzer inspection before delivery
Brand | Model | capacity | Dimension(m) | Power | Fuel consumption | Weight(kg) | ||
Huariton | HI-30 | 30 | 1.6 | 0.7 | 0.9 | 0.55 | 2 | 200 |
HI-50 | 50 | 1.8 | 1.15 | 2 | 0.59 | 4 | 3000 | |
HI-150 | 150 | 2 | 1.4 | 3 | 0.72 | 8 | 5000 | |
HI-300 | 300 | 2.2 | 1.4 | 3.5 | 1.69 | 15 | 6000 | |
HI-500 | 500 | 3 | 2 | 4.5 | 2.24 | 20 | 10000 | |
HPI-50 | 50 | 1.35 | 1.1 | 1.7 | 0.66 | 4 | 1500 | |
It's not complicated. 95% of our equipment comes pre-assembled at the factory. All you need to do is connect the fuel lines, power source, and chimney. We provide detailed installation videos and manuals, and we offer 24/7 online engineer guidance. For larger projects, we can send engineers to perform on-site installation and commissioning (extra charge).
The whole machine is under warranty for one year (12 months), excluding consumable parts such as refractory materials. We promise to provide lifelong technical support and preferential spare parts supply.
Yes. Our core technology lies in a dual-combustion chamber design, ensuring that the flue gases remain above 850°C for two seconds. This is essential for meeting DEFRA and EPA standards. We have successfully passed multiple local environmental protection agency inspections.
Consumption depends on the type of waste you're processing (e.g., high-moisture animal waste consumes more fuel). For example, the YHI-100 consumes approximately 7-12 L/hour of diesel fuel under stable combustion conditions. Our intelligent control system minimizes fuel consumption.
The minimum order quantity is 1 set (MOQ: 1 Set). Standard models typically require a delivery time of 20-25 working days.
