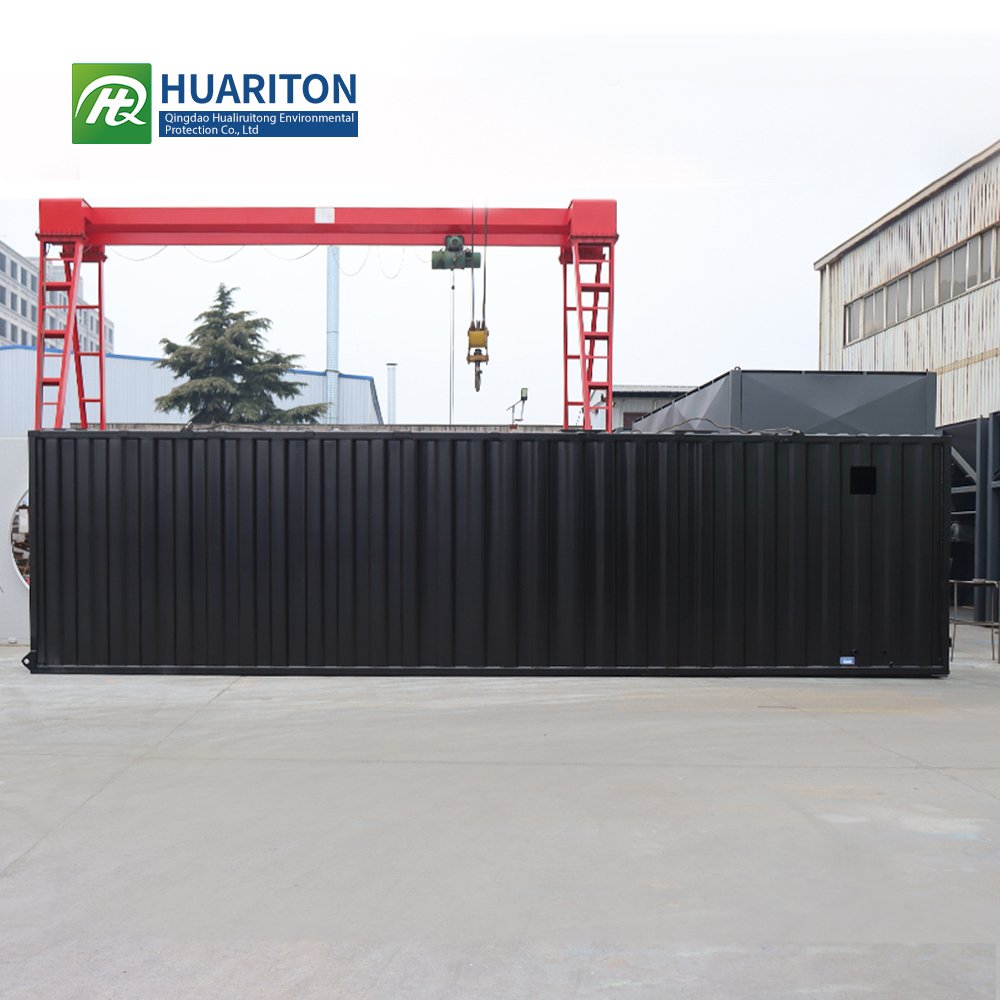

Key Advantages of Integrated sewage treatment equipment
On-Site & High-Efficiency Treatment
No reliance on municipal sewer systems is required. Our MBR equipment treats wastewater to the highest standards on-site, and the effluent can be directly discharged or reused.
Superior Effluent Quality
MBR membranes (pore size < 0.1µm) retain 100% of sludge and bacteria. The effluent quality is superior to Class A standards and can stably meet California Title 22 or EU reuse standards.
Save 60% Footprint
The MBR process produces high sludge concentrations (8000-12000 mg/L) and eliminates the need for a secondary sedimentation tank. The equipment is highly integrated, occupying only 1/3 to 1/2 the floor space of traditional processes.
Fully Automatic & Eco-Friendly
1. PLC Intelligent Control: One-button start/stop, automatic operation, automatic backwashing, and fault alarm.
2. In-ground Design (Optional): Can be buried underground, with the top covered with greenery, noiseless, odorless, and blends perfectly with the environment.
Plug & Play Installation
The equipment is 95% prefabricated and assembled in the factory. After arriving on site, hoisting and pipeline connection can be completed within 1-3 days, greatly shortening the construction period.
Wide Range of Applications
Hotels
Resorts
Remote Communities
Schools
Hospitals
Highway Service Areas
Industrial Parks
Core Tech: Why MBR is Superior?
Our MBR Process | Conventional Activated Sludge | |
Separation | MBR membrane (0.1µm pore size) | Gravity Settling |
Footprint | Minimal size (no secondary settling tank required) | Huge (requires a large secondary sedimentation tank) |
Effluent | Extremely high quality, clear, and sterile (reusable) | Generally, cloudy, containing bacteria. |
MLSS | High (8000-12000 mg/L) | Low (3000-4000 mg/L) |
Sludge | Very few | Large quantity (requires frequent outbound shipments) |
Operation | Fully automatic, impact resistant | Sludge bulking is prone to occur and is unstable. |
Model | Processing capacity(m³/h) | Length(m) | Width(m) | Height(m) |
YHDS-5 | 5 | 3 | 1 | 1.5 |
YHDS-10 | 10 | 4 | 1 | 1.5 |
YHDS-15 | 15 | 4 | 1.5 | 1.5 |
YHDS-20 | 20 | 4 | 1.5 | 2 |
YHDS-30 | 30 | 6 | 1.5 | 2 |
YHDS-50 | 50 | 6 | 2 | 2.5 |
YHDS-80 | 80 | 9 | 2 | 2.5 |
YHDS-100 | 100 | 12 | 2 | 2.5 |
YHDS-120 | 120 | 8 | 3 | 3 |
YHDS-150 | 150 | 10 | 3 | 3 |
YHDS-200 | 200 | 13 | 3 | 3 |
Please be sure to provide: 1. Daily water treatment capacity (Flow Rate, m³/day) 2. Sewage source (e.g., hotel, hospital, domestic) 3. Existing water quality reports (BOD, COD, NH3-N, etc.) 4. Required effluent standards (e.g., discharge standards or reuse standards).
No. Our PVDF membranes have a lifespan of 5-8 years. The system is fully automated; the PLC automatically performs online cleaning (backwashing). You only need to perform a simple offline chemical cleaning approximately every 3-6 months (we provide guidance), no professional personnel required.
The main energy consumption of MBR comes from the aeration blower. Our system uses intelligent intermittent aeration and high-efficiency membrane modules, which saves about 20-30% of energy compared to traditional processes.
Standard models (10-100 m³/d) typically take 30-40 days. For large-scale customized projects, please contact us for details.
