Huariton underground integrated wastewater treatment system provides efficient domestic sewage and industrial wastewater treatment with compact underground installation, stable operation, low maintenance, and customized process solutions.
Huariton Underground Integrated Wastewater Treatment System is a compact and highly efficient solution designed for decentralized sewage treatment and industrial wastewater treatment applications. The system adopts an underground installation structure, saving valuable land space while minimizing noise, odor, and environmental impact.
The equipment integrates equalization, biological treatment, sedimentation, disinfection, and sludge treatment processes into a single modular unit. It is suitable for residential communities, hotels, hospitals, schools, factories, tourist areas, highway service stations, and remote locations without centralized sewage infrastructure.
With flexible treatment processes such as AO, A2O, MBBR, and MBR, the system can be customized according to influent water quality, treatment capacity, and local discharge standards.
Underground installation with minimal land occupation
Integrated modular structure for easy transportation and installation
Low operating and maintenance costs
Stable and reliable effluent quality
Automatic PLC control system available
Low noise and low odor operation
Corrosion-resistant carbon steel or stainless steel construction
Flexible process configuration for different wastewater conditions
Optional remote monitoring and intelligent control
Suitable for continuous long-term operation

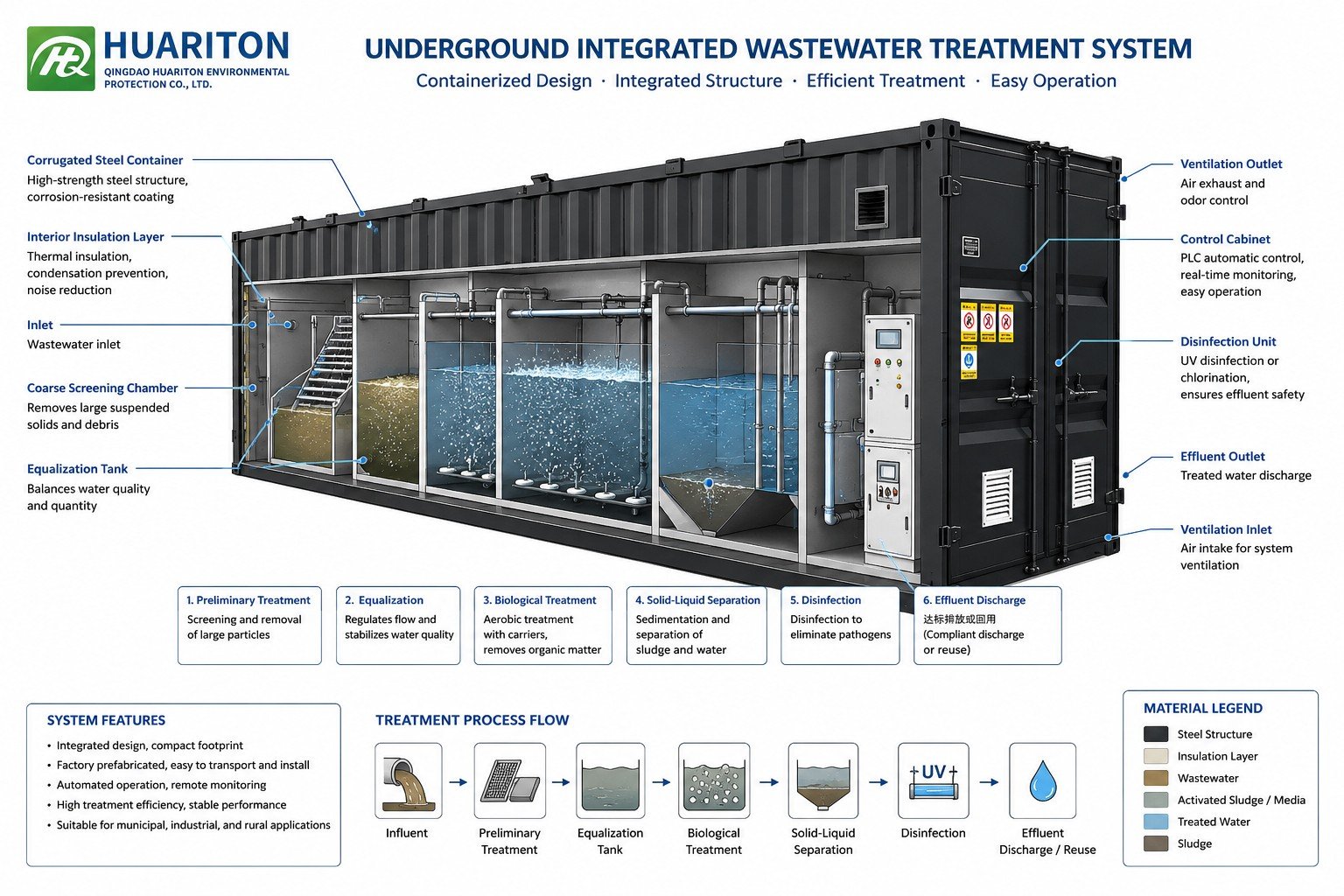

The wastewater first enters the equalization tank where flow rate and water quality are balanced. The wastewater then flows into the biological treatment zone where microorganisms decompose organic pollutants and remove nitrogen and phosphorus.
After biological treatment, suspended solids are separated in the sedimentation section. The treated water is disinfected before final discharge or reuse.
Depending on project requirements, advanced treatment units such as membrane filtration, sand filtration, or activated carbon filtration can be added to further improve effluent quality.
The underground structure effectively reduces visual impact and allows the surface area above the equipment to be used for landscaping, parking, or green space.
Huariton Underground Integrated Wastewater Treatment System is widely used in:
Residential communities
Hotels and resorts
Hospitals and clinics
Schools and universities
Office buildings
Industrial factories
Highway service areas
Rural sewage treatment projects
Tourist attractions
Mining camps
Construction sites
Remote villages and islands
Compared with traditional above-ground wastewater treatment plants, underground integrated systems offer several advantages:
Better environmental appearance
Reduced odor and noise pollution
Improved land utilization
Enhanced weather protection
Safer operation environment
Lower visual impact on surrounding areas
The underground design is especially suitable for urban projects and environmentally sensitive locations.
Huariton can provide customized configurations including:
Containerized control room
Online monitoring system
Remote IoT control
UV disinfection system
Membrane bioreactor (MBR)
Sludge dewatering unit
Air flotation pretreatment
Chemical dosing system
Solar-powered operation system
Huariton specializes in industrial wastewater treatment equipment and integrated sewage treatment solutions for global customers.
We provide:
Customized engineering design
Professional technical support
OEM and export services
Strict quality control
Competitive factory pricing
Fast delivery
Installation guidance
Long-term after-sales support
Our wastewater treatment systems are designed for stable operation, energy efficiency, and long service life under various environmental conditions.
Looking for a reliable underground integrated wastewater treatment system manufacturer?
Contact Huariton today for customized wastewater treatment solutions, technical consultation, and competitive project support.
| Model | Processing capacity(m³/h) | Length(m) | Width(m) | Height(m) |
| HDS-5 | 5 | 3 | 1 | 1.5 |
| HDS-10 | 10 | 4 | 1 | 1.5 |
| HDS-15 | 15 | 4 | 1.5 | 1.5 |
| HDS-20 | 20 | 4 | 1.5 | 2 |
| HDS-30 | 30 | 6 | 1.5 | 2 |
| HDS-50 | 50 | 6 | 2 | 2.5 |
| HDS-80 | 80 | 9 | 2 | 2.5 |
| HDS-100 | 100 | 12 | 2 | 2.5 |
| HDS-120 | 120 | 8 | 3 | 3 |
| HDS-150 | 150 | 10 | 3 | 3 |
| HDS-200 | 200 | 13 | 3 | 3 |
The system is suitable for domestic sewage, municipal wastewater, hotel wastewater, hospital wastewater, and various industrial wastewater applications.
Yes. Huariton can customize AO, A2O, MBBR, MBR, and other treatment processes according to project requirements.
No. The integrated modular structure simplifies civil construction and installation work compared with traditional wastewater treatment plants.
The equipment can be manufactured using carbon steel, stainless steel, or FRP materials depending on the application environment.
Yes. With advanced treatment and disinfection options, the treated effluent can be reused for irrigation, landscaping, flushing, or industrial purposes.
