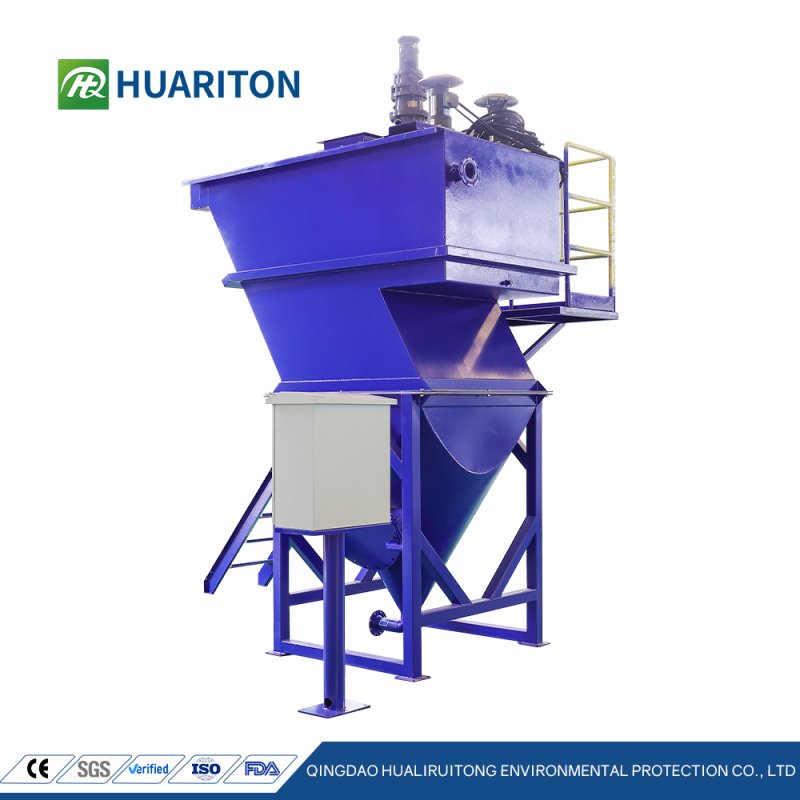

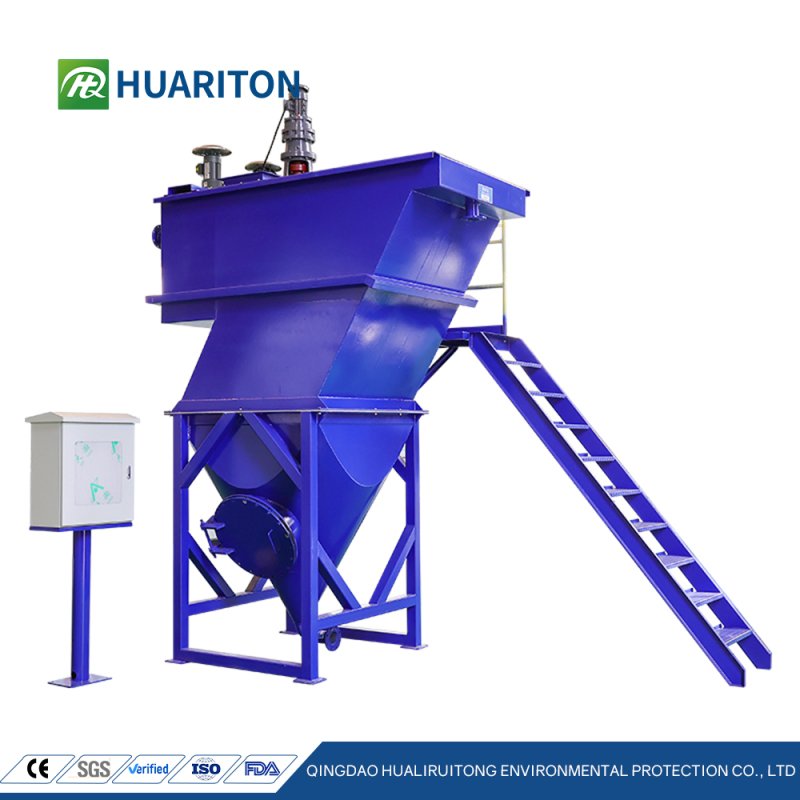

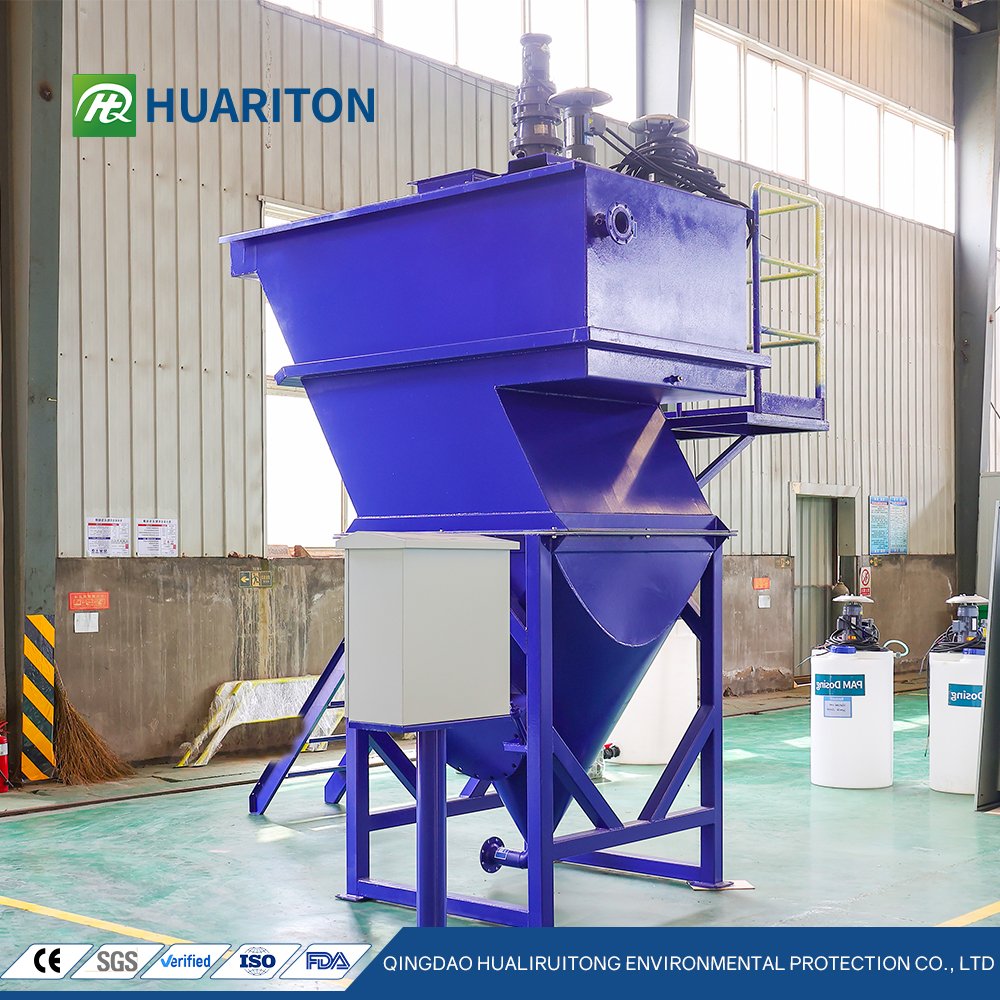

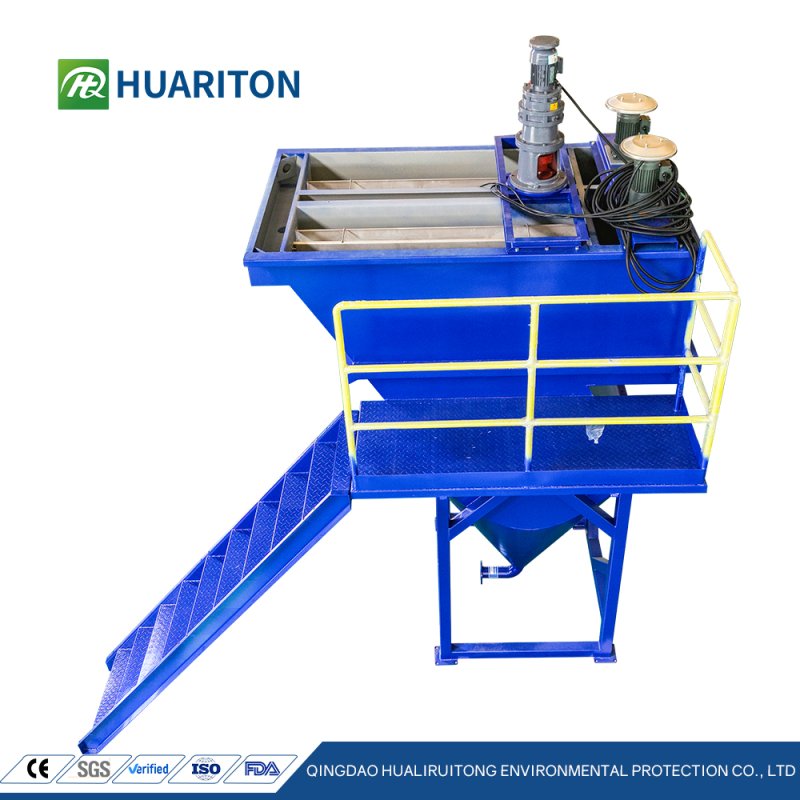

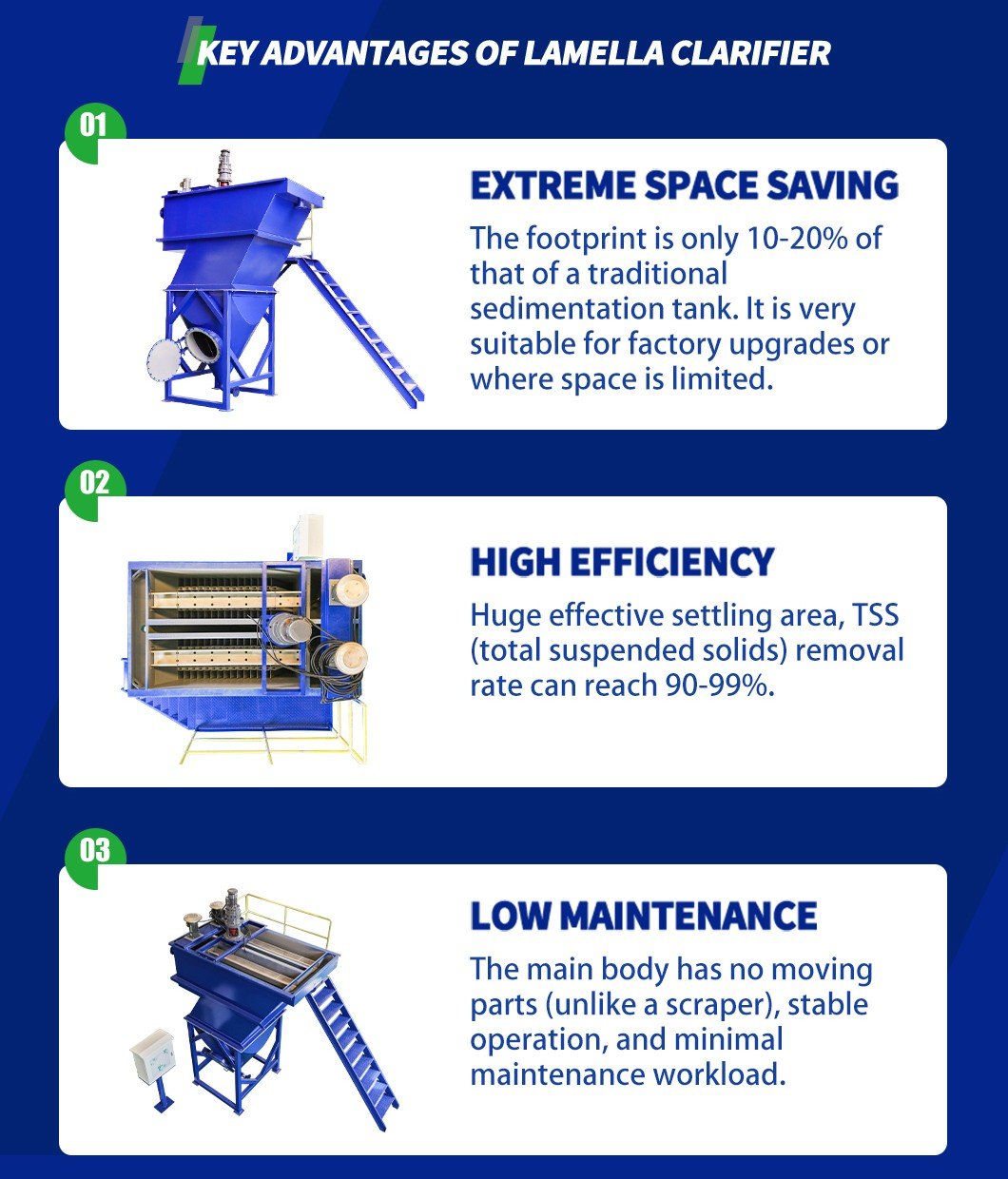

Key Advantages of Lamella Clarifier
Extreme Space Saving
The footprint is only 10-20% of that of a traditional sedimentation tank. It is very suitable for factory upgrades or where space is limited.
High Efficiency
Huge effective settling area, TSS (total suspended solids) removal rate can reach 90-99%.
Low Maintenance
The main body has no moving parts (unlike a scraper), stable operation, and minimal maintenance workload.

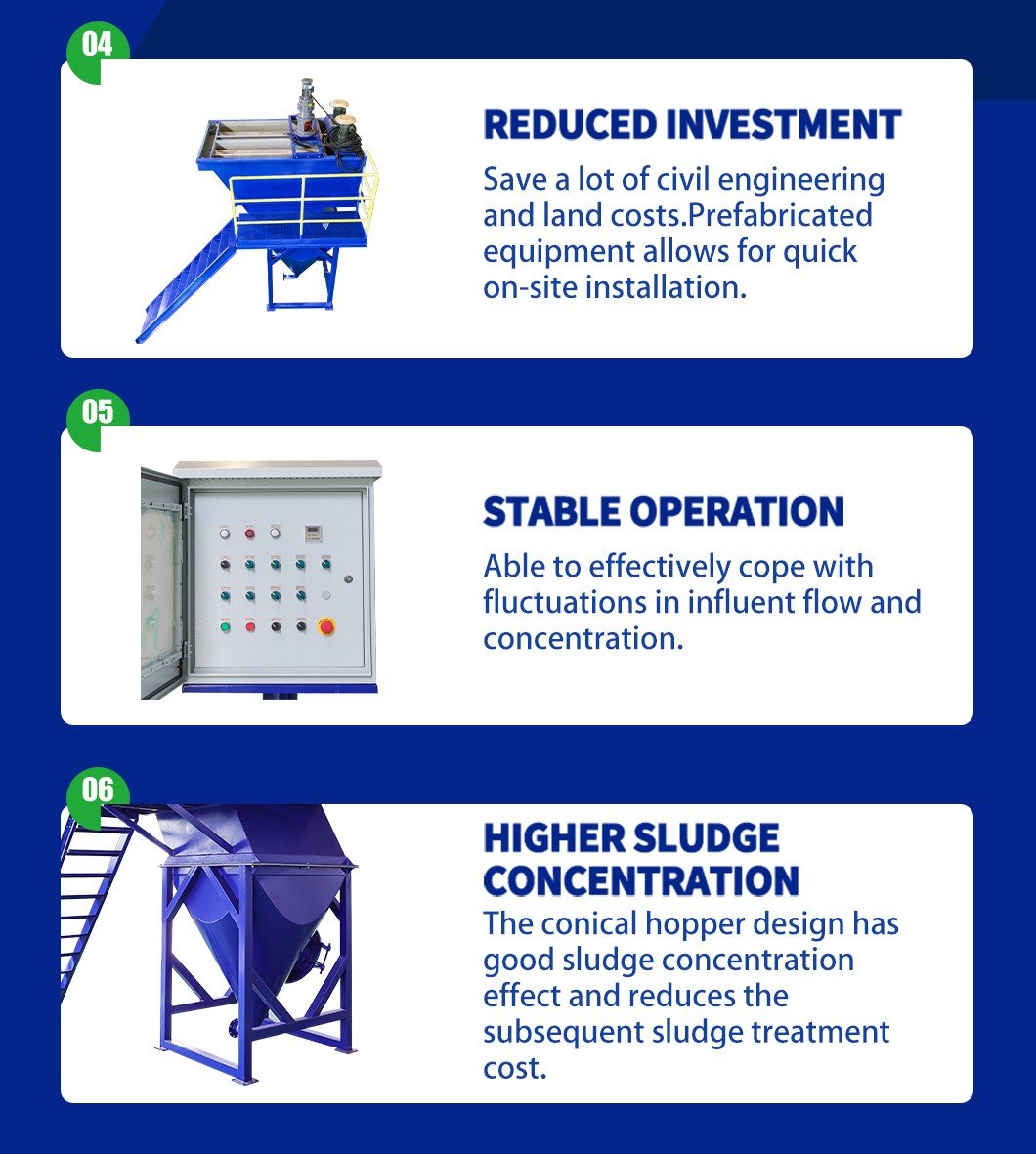

Reduced Investment
Save a lot of civil engineering and land costs. Prefabricated equipment allows for quick on-site installation.
Stable Operation
Able to effectively cope with fluctuations in influent flow and concentration.
Higher Sludge Concentration
The conical hopper design has good sludge concentration effect and reduces the subsequent sludge treatment cost.
Wide Range of Applications
Mining
Metal Finishing & Electroplating
Municipal Water
Industrial Wastewater
Food & Beverage
Sand & Aggregate Washing
Specification Table | ||||||||||
Brand | Model | Capacity | Dimension(m) | Power | Nozzle size | Bucket number | ||||
m³/h | L | W | H | kw | Inlet | Outlet | Sludge outlet | |||
HUARITON | YHLC-1 | 1 | 1.6 | 0.9 | 2.3 | / | DN40 | DN50 | DN80 | 1 |
YHLC-3 | 3 | 2.2 | 1.2 | 2.3 | / | DN40 | DN50 | DN80 | 1 | |
YHLC-5 | 5 | 2.9 | 1.6 | 2.8 | / | DN40 | DN65 | DN80 | 1 | |
YHLC-II-5 | 5 | 2.2 | 1.2 | 2.3 | 0.55 | DN40 | DN50 | DN80 | 1 | |
YHLC-10 | 10 | 5.2 | 1.8 | 3.1 | / | DN65 | DN100 | DN80 | 1 | |
YHLC-II-10 | 10 | 3.3 | 2.2 | 3.1 | 0.75 | DN65 | DN100 | DN80 | 1 | |
YHLC-20 | 20 | 5.9 | 2.2 | 3.75 | / | DN100 | DN150 | DN100 | 2 | |
YHLC-30 | 30 | 7.5 | 2.2 | 3.75 | / | DN100 | DN150 | DN100 | 3 | |
YHLC-II-30 | 30 | 4.7 | 3 | 3.75 | 1.1 | DN100 | DN150 | DN100 | 1 | |
YHLC-50 | 50 | 9.5 | 2.2 | 3.75 | / | DN125 | DN200 | DN100 | 4 | |
YHLC-70 | 70 | 11.5 | 2.2 | 3.75 | / | DN125 | DN200 | DN100 | 5 | |
YHLC-80 | 80 | 10.5 | 3 | 3.8 | / | DN150 | DN250 | DN100 | 3 | |
YHLC-100 | 100 | 11.5 | 3 | 3.8 | / | DN200 | DN250 | DN100 | 4 | |
For an accurate quote, please provide: 1. Water volume (Flow Rate, m³/h) 2. Water source type (Water Type, e.g., river water, mining wastewater) 3. Inlet TSS concentration (Inlet TSS, mg/L) 4. Required outlet TSS concentration (Outlet TSS, mg/L) 5. Material preference (Material preference, e.g., SS304 or Carbon Steel).
It depends on your particles. For very fine or colloidal particles (such as clay), we strongly recommend the use of a flocculation system and the addition of PAC/PAM to achieve the best sedimentation effect. We can integrate the flocculation tank with the Lamela host.
It's very simple. With no moving parts, daily maintenance only requires: 1. Observing the outlet water quality 2. Opening the bottom valve to drain mud as needed (automatically or manually).
Standard models usually take 25-30 days. Large customized models take 35-45 days.
